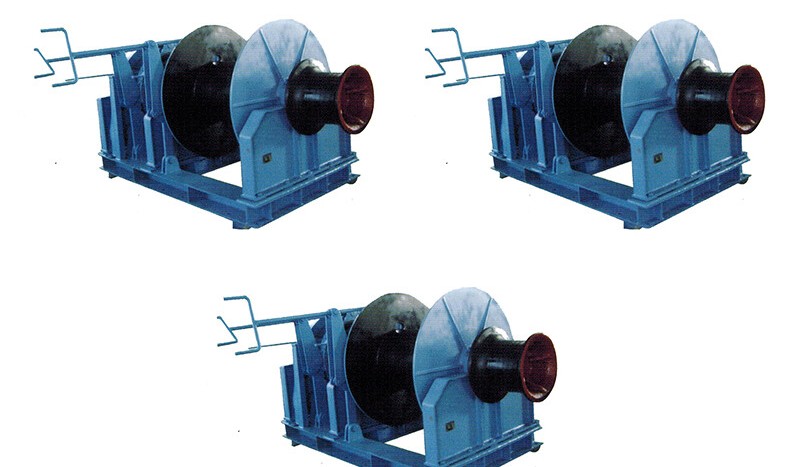

400KN Electric Ship-shifting Winch
400KN Electric Ship-shifting Winch
The electric or hydraulic winches are used in inland river boats and coustal ships for mooring hoisting or weighting.
Drawing
Technical specifications
Rated Pull
400
KN
Nominal Speed
0-20 m/min
Cable Diameter
φ60 mm
Cable Capacity
300 m
Holding Load
1200 KN
Warping End Load
100KN
Hydro-motor Type
BJM5-2000
Working Pressure
16 Mpa
Flow Rete
960 L/min
| Rated Pull | 400 KN | ||||
| Nominal Speed | 0-20 m/min | ||||
| Cable Diameter | φ60 mm | ||||
| Cable Capacity | 300 m | ||||
| Holding Load | 1200 KN | ||||
| Warping End Load | 100KN | ||||
| Hydro-motor Type | BJM5-2000 | ||||
| Working Pressure | 16 Mpa | ||||
| Flow Rete | 960 L/min |
