750Kn Electric Winch:
200-1000Kn Electric Winch
Electric winch is widely used in places where work is heavy and where traction is required. The motor of the single-roller electric winch drives the reel through the reducer, and a brake is arranged between the motor and the input shaft of the reducer. In order to meet the needs of lifting, traction and turning, there are also winches for double reels and multi-reel devices.
Technical specifications
|
Rated Pull (KN) |
Rated Speed (m/min) |
Drum Capacity (mm×m) |
Braking Force (KN) |
Motor Power (KW) |

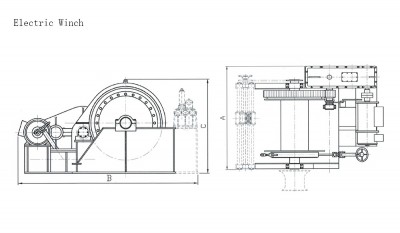

Dimensions(mm) |
Weight (ton) |
||
| A | B | C | ||||||
| 400 | 7.5 | 52×750 | 1000 | 100/100/48 | 3400 | 4750 | 1950 | 25.4 |
| 520 | 5 | 56×850 | 1200 | 100/100/48 | 3550 | 5000 | 2175 | 29.6 |
| 650 | 5 | 56×850 | 1200 | 100/100/48 | 3550 | 5000 | 2175 | 29.6 |
| 750 | 5 | 60×850 | 1500 | 100/100/48 | 3700 | 5400 | 2400 | 35.9 |
| 850 | 4 | 65×1000 | 1500 | 135/135/65 | 3850 | 5800 | 2600 | 39.8 |
| 1000 | 4 | 65×1000 | 1500 | 135/135/65 | 3850 | 5800 | 2600 | 42.5 |
|
Rated Pull (KN) |
Rated Speed (m/min) |
Drum Capacity (mm×m) |
Braking Force (KN) |
Motor Power (KW) |

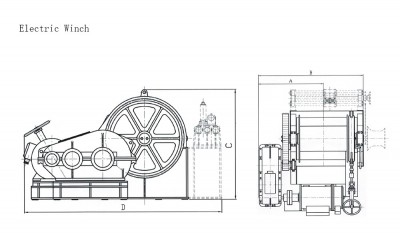

Dimensions(mm) |
Weight (ton) |
|||
| A | B | C | D | ||||||
| 200 | 12 | 36.5×200 | 600 | 60/60/45 | 1700 | 2800 | 1800 | 2700 | 10.3 |
| 250 | 10 | 47.5×200 | 750 | 60/60/45 | 1700 | 2800 | 1800 | 2700 | 10.3 |
| 300 | 9 | 52×250 | 900 | 60/60/45 | 1850 | 3000 | 1850 | 2800 | 11.5 |
| 350 | 7.5 | 52×250 | 900 | 60/60/45 | 1700 | 2800 | 1850 | 2800 | 11.5 |
