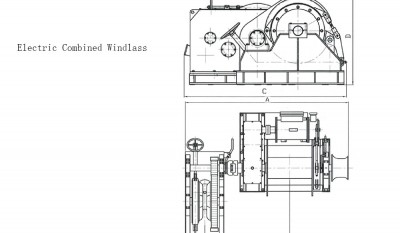

50mm Electric Combined Windlass
Category:
Electric anchor windlass
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
50mm Electric Combined Windlass:
44-62mm Electric Combined Windlass

The anchor windlass is mainly composed of a base, a bracket, an anchor sprocket, a brake, a sprocket, a gearbox, an electric control system (except a manual windlass), an electric windlass has an electric motor, and a hydraulic windlass has a hydraulic pumping station. The main technical indicators of the windlass include the diameter of the anchor chain, the nominal speed of the anchor, the rated load, the supporting load, several shifts, and the electric system. The installation of the anchor windlass on the ship should ensure that the wrap angle of the anchor chain and the sprocket is 117-120°.

Technical specifications

Chain Dia.
(mm)
Working Load
(KN)
Working
Speed
(m/min)
Mooring Pull
(KN)
Mooring Speed
(m/min)
Drum
Capacity
(φmm×m)
Motor
Power
(KW)
Dimensions(mm) Weight
(ton)
M2 M3 A B C D
44 82 92 9 50 15 20.5×120 22/22/16 3100 1550 2800 1575 7.68
46 90 101 9 50 15 20.5×120 22/22/16 3100 1550 2800 1575 7.68
48 98 109 9 50 15 20.5×120 30/30/22 3400 1700 2900 1700 8.85
50 106 119 9 75 15 26×200 30/30/22 3400 1700 2900 1700 8.85
52 115 128 9 75 15 26×200 30/30/22 3700 1850 3175 1825 10.2
54 124 139 9 75 15 26×200 30/30/22 3700 1850 3175 1825 10.2
56 133 149 9 75 15 26×200 30/30/22 3700 1850 3175 1825 10.2
58 143 160 9 75 15 26×200 45/45/30 4000 2000 3400 2080 12.4
60 153 171 9 100 15 30×200 45/45/30 4000 2000 3400 2080 12.4
62 163 183 9 100 15 30×200 45/45/30 4000 2000 3400 2080 12.4

Note: Dimension B to be provided by user.


Send us your inquiry now

we would revert with you within 24 hours.

We'll never share your email with anyone else.
Please send the specification, quantity, class certificate or other information.
