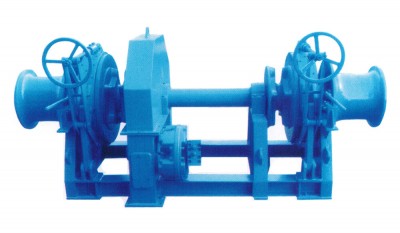

40mm Double Anchor Sprocket Hydraulic Windlass
Category:
Hydraulic anchor windlass
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
40mm Double Anchor Sprocket Hydraulic Windlass:
17.5-46mm Double Anchor Sprocket Hydraulic Windlass

The hydraulic anchor windlass is installed on the main deck of the ship's first raft for the anchoring of the ship and for anchoring the tether.The abchor windlass is mainly composed of a base, a bracket, an anchor sprocket, a brake, a sprocket, a gearbox, an electric control system (except a manual windlass), an electric windlass has an electric motor, and a hydraulic windlass has a hydraulic pumping station.

Drawing

Technical Specifications

Dia.of
Chain Wheel
(mm)
Working Load
(Kn)
Over Loading
Pulling Force
(Kn)
Holding Load
(Kn)
Nominal Speed
(m/min)
Warping Load
(Kn)
AM2 AM3 AM2 AM3 AM2 AM3
17.5 13.0 14.6 19.5 21.9 80 115 9 8
19 15.3 17.2 23.0 25.8 95 135 9 10
20 17.9 20.0 26.9 30.0 110 157 9 10
22 20.6 23.0 30.9 34.5 126 180 9 15
24 24.5 27.4 36.8 41.1 149 214 9 20
26 28.7 32.1 43.1 48.2 175 250 9 20
28 33.3 37.2 50.0 55.8 202 289 9 20
30 38.3 42.8 57.5 64.2 231 330 9 30
32 43.5 48.6 65.3 72.9 261 374 9 30
34 49.1 54.9 73.7 82.4 294 421 9 30
36 55.1 61.6 82.7 92.4 329 470 9 30
38 61.4 68.9 92.1 103.4 365 522 9 40
40 68.0 76.0 102.0 114.0 402 576 9 40
42 75.0 83.8 112.5 125.7 442 632 9 50
44 82.3 92.0 123.5 138.0 483 691 9 50
46 89.9 100.5 134.9 150.8 526 753 9 50
