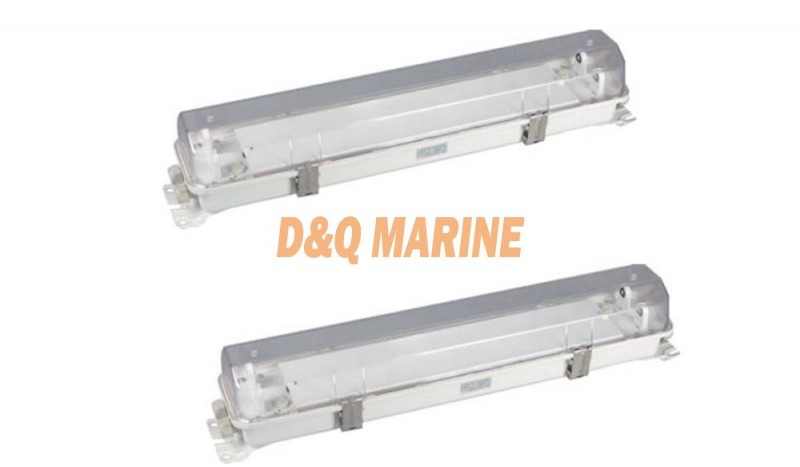

ZYC20/40 Fluorescent Pendant Light

ZYC20/40 Fluorescent Pendant Light

The scope of application

1.ZYC20/40 Fluorescent Pendant Light fit for illumination for the places of ships with water dripping, water spattering, water coagulating(such as weather place, such as oven cabin, dry cabin, tunnel, pipeline and weather deck etc.).

2.The temperature of work environment is -25℃～+55℃..

Products feature

1. The shell adopts good quality cold-rolled plate by mold pressing ,surface is powder coated after anti-acid white.

2. The lampshade is made of transparent impact resistant poly carbonate plastic by injection forming, Lampshade seal-ring use foamed silicone rubber, with good sealed performance.

3. In order to ensure the safety of electricity, both inside and outside of lamps is equipped with "＊" connection bridge.

4. Equipped with B15d emergency lamp holder, installation 24V / 15W emergency bulb, as temporary lighting when power off. With emergency lamp holder lights, on the lampshade with a red remark.

5. Configured compensating capacitors in inside of light to improve the power factor and reduce losses.

6. The main components of light be fixed on the reflector, convenient to remove for servicing.

7. The cable outside diameter is Φ11～Φ13mm.

Adopt standard and product certification

1. Conform to standard of IEC60598-1-2008.

2. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.

3. Approved by China Classification Society (CCS).

4. Passed the European Union (CE) certification.

Installation

ZYC20 Fluorescent Pendant Light Specification

ZYC40 Fluorescent Pendant Light Specification
