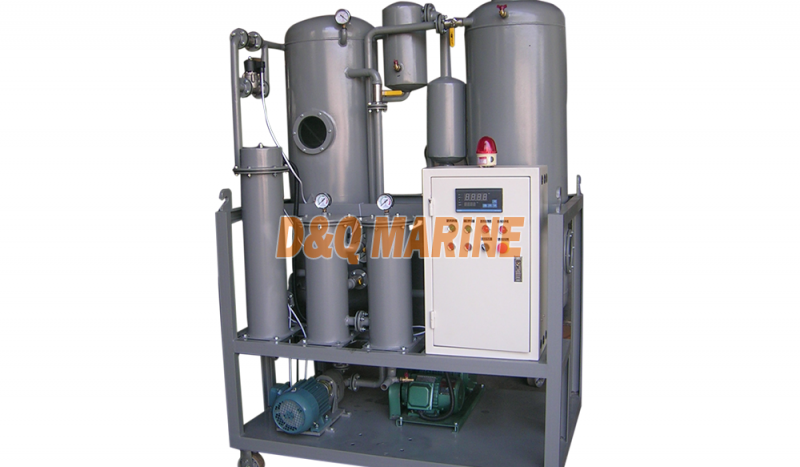

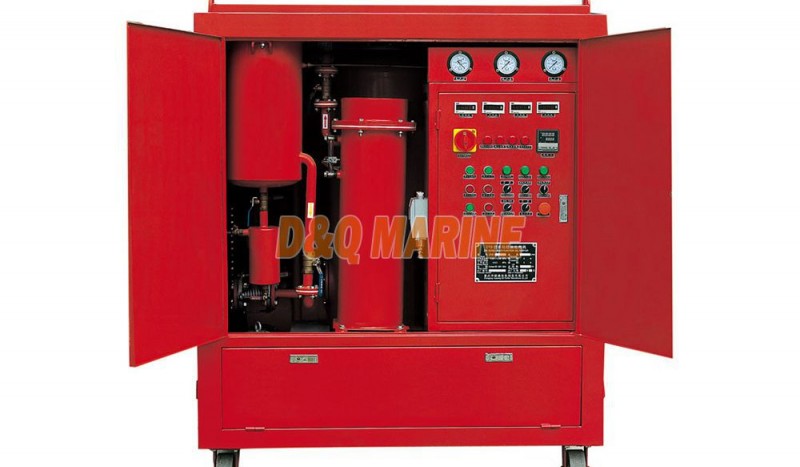

ZYB Series Multi Function Oil Purifier
Category:
Oil Purifier
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
ZYB Series Multi Function Oil Purifier:
Application:

The product can be used for 110KV and below transformer installation and overhaul, as well as for treatment to non-conformable transformer oil, mutual indicator oil and circuit breaker oil in power inductor (especially applicable to recovery of extremely inferior installation oil, as well as for transformer vacuum oil filling and drying.

Technical Feature:

In addition to its capability to remove water , gas and impurities in oil like functions of ordinary vacuum purifier, the purifier can also recover the inferior insulation oil, which could effectively remove the intensive oxide and free carbon, thus resumes anti-oxidation and acid/alkali water solubility characteristics, after treatment, the oil can meet the national standard in respect of water content, withstand value , gas content, acid value and medium consumption requirement, the purifier has multi-purpose functions. Its function removal of water, gas or impurities and the recovery system can operate together at the same time , being easy to operate with higher effectiveness.

The purifier has multi-purpose functions, its function of removal of water, gas or impurities and the recovery system can operate together at the same time, being easy to operate with higher effectiveness.

Technical Data:

Item Unit ZYB-10 ZYB-20 ZYB-30 ZYB-50 ZYB-100 ZYB-150 ZYB-200 ZYB-300
Flow Rate L/min 10 20 30 50 100 150 200 300
working vacuum Mpa -0.06~-0.095
working Preuusre Mpa ≤0.4
Constant temperature control range 20 ~80
power / 380V/50HZ三相5线(or at user's option)
noise db(A) dB(A) ≤65~85(depend on user's requirement)
Fult-free working hours h ≥4000
continuous hours h ≥150
Heating power Kw 9 15 15 15 24 48 54 72
Total Power Kw 9.7 16.5 16.5 16.5 26 52 60 80
Inlet(outlet) diameter mm Φ25 Φ25 Φ25 Φ32 Φ42 Φ50 Φ50 Φ60
weight kg 350 400 450 500 600 800 1200 1500
After filteration breakdown voltage KV ≥65
water content ppm ≤5
Flash point ≥135
Dielectric loss tgδ(90℃)% ≤0.5
acid value mgKOH/g ≤0.03
gas content % ≤0.1
granularity μm ≤3(at user's option)
