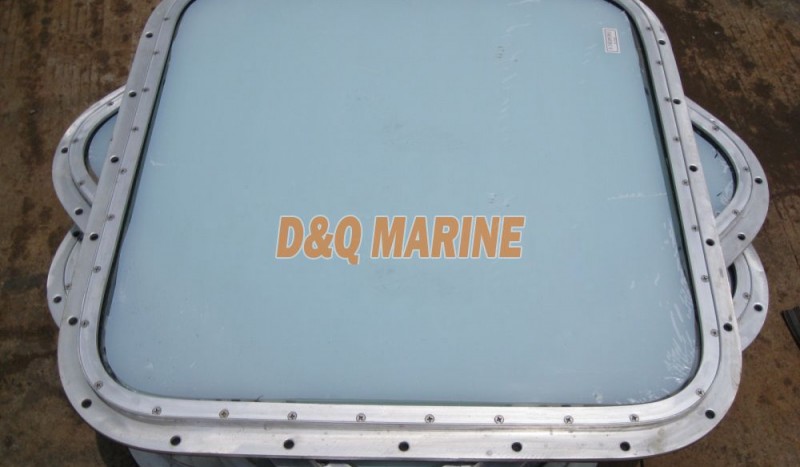

Marine Fixed Rectangular Window For Wheel House
Marine Fixed Rectangular Window For Wheel House:
| TYPE | NOMINAL DIM. | WINDOW SEAT | BULKHEAD OPENING | GLASS TH. | KG | |||
| B | W1XH1 | W2XH2 | W3XH3 | R | WH | WH | WH | WN |
| 800X630 | 848X678 | 852X682 | 126 | 12 | 15 | 41.3 | 41.8 | |
| 800X710 | 848X758 | 852X762 | 12 | 15 | 44.2 | 44.8 | ||
| 900X630 | 948X678 | 952X682 | 12 | 17 | 45.1 | 46.9 | ||
| 900X710 | 948X758 | 952X762 | 12 | 17 | 48.5 | 50.5 | ||
| 900X800 | 948X848 | 952X852 | 12 | 17 | 52.4 | 54.6 | ||
| 1200X630 | 1248X678 | 1252X682 | 15 | 20 | 60.9 | 63.3 | ||
| 1200X710 | 1248X758 | 1252X762 | 15 | 20 | 66.6 | 69.2 | ||
| 1200X800 | 1248X848 | 1252X852 | 15 | 20 | 72.2 | 75.2 | ||
| 1500X710 | 1548X758 | 1552X762 | 15 | 20 | 79.8 | 83.1 | ||
| 1500X800 | 1548X848 | 1552X852 | 15 | 20 | 86.4 | 90.1 | ||
| 1800X710 | 1848X758 | 1852X762 | 15 | 20 | 93.1 | 97.1 | ||
| 1800X800 | 1848X848 | 1852X852 | 15 | 20 | 100.4 | 104.8 | ||
| 1800X900 | 1848X948 | 1852X952 | 15 | 20 | 108.6 | 113.6 | ||
