ZX ZXL Series Marine Self-sucked Pump:
China ZX ZXL Series Marine Self-sucked Pump:
ZX series self-priming pump is a self-priming centrifugal pump, it has the advantages of compact structure, convenient operation, smooth operation, easy maintenance, high efficiency, long life, and strong self-priming ability.There is no need to install the bottom valve in the pipeline. Before the work, it is only necessary to keep the quantitative liquid introduction stored in the pump body, which simplifies the pipeline system and improves the working conditions.

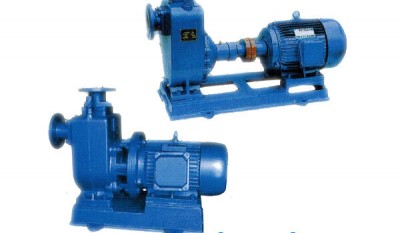

ZX ZXL Series Marine Self-sucked Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 25ZX-20 | 3.2 | 20 | 2900 | 0.75 |
| 25ZX-32 | 3.2 | 32 | 2900 | 1.1 |
| 40ZX-20 | 6.3 | 20 | 2900 | 1.1 |
| 40ZX-40 | 6.3 | 32 | 2900 | 2.2 |
| 50ZX-12 | 10 | 40 | 2900 | 4 |
| 50ZX-20 | 6.3 | 50 | 2900 | 4 |
| 50ZX-30 | 15 | 12 | 2900 | 1.5 |
| 50ZX-35 | 18 | 20 | 2900 | 2.2 |
| 50ZX-40 | 12.5 | 32 | 2900 | 3 |
| 50ZX-50 | 20 | 30 | 2900 | 4 |
| 50ZX-60 | 14 | 35 | 2900 | 4 |
| 50ZX-75 | 10 | 40 | 2900 | 4 |
| 65ZX-15 | 12.5 | 50 | 2900 | 5.5 |
| 65ZX-32 | 15 | 60 | 2900 | 7.5 |
| 80ZX-13 | 20 | 75 | 2900 | 11 |
| 80ZX-17 | 30 | 15 | 2900 | 3 |
| 80ZX-22 | 25 | 32 | 2900 | 5.5 |
| 80ZX-25 | 35 | 13 | 2900 | 3 |
| 80ZX-32 | 43 | 17 | 2900 | 4 |
| 80ZX-55 | 40 | 22 | 2900 | 5.5 |
| 80ZX-70 | 50 | 25 | 2900 | 3 |
| Also have bigger pumps, pls contact us for more information. | ||||
