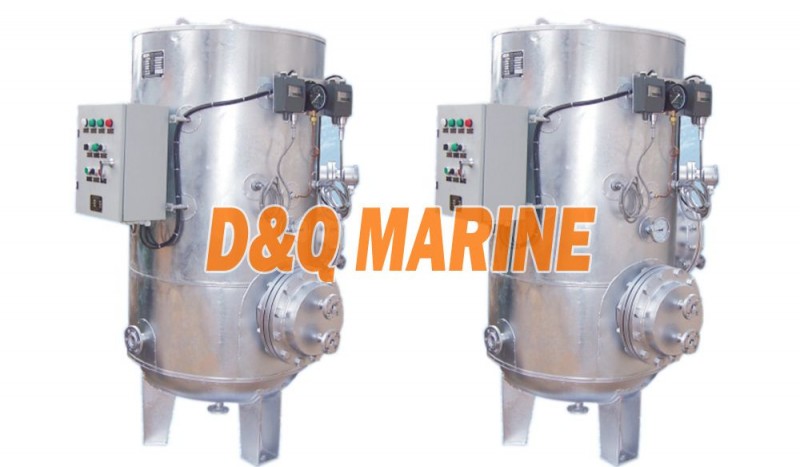

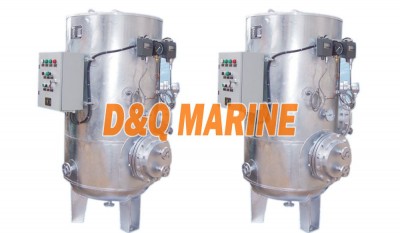

ZRG Series steam heating hot water tank
Description:
This series of hot water tank is suitable for fresh water system that is heated by steam.
Technical Data:
| Type |
Capacity m3 |
Design Mpa |
Working Pressure Mpa |
Water Inlet Temp℃ |
| ZRG-0.12 | 0.12 | 0.7 | 0.6 | 15 |
| ZRG-0.2 | 0.2 | |||
| ZRG-0.3 | 0.3 | |||
| ZRG-0.5 | 0.5 | |||
| ZRG-1 | 1 | |||
| ZRG-1.5 | 1.5 |
| Type |
Water Outlet Temp ℃ |
Steam Pressure Mpa |
Heater Water Capacity Kg |
Steam Consume Kg/h | Wegiht Kg |
| ZRG-0.12 | 65 | 0.3 | 275 | 27.5 | 210 |
| ZRG-0.2 | 450 | 45 | 245 | ||
| ZRG-0.3 | 750 | 75 | 330 | ||
| ZRG-0.5 | 1200 | 120 | 400 | ||
| ZRG-1 | 3250 | 325 | 591 | ||
| ZRG-1.5 | 4900 | 490 | 760 |
General Dimensions:
| Type | Heating m2 | D | A | B | d | d2 | d3 |
| ZRG-0.12 | 0.24 | 400 | 608 | 666 | DN25 | DN20 | DN20 |
| ZRG-0.2 | 0.38 | 500 | 708 | 766 | |||
| ZRG-0.3 | 0.6 | 600 | 808 | 903 | DN32 | ||
| ZRG-0.5 | 1 | 700 | 910 | 955 | DN25 | ||
| ZRG-1 | 2.6 | 900 | 1100 | 1150 | DN40 | DN25 | DN32 |
| Type | C | L | h1 | H2 | H3 | H |
| ZRG-0.12 | Φ300 | 314 | 300 | 470 | 1270 | |
| ZRG-0.2 | Φ400 | 364 | 330 | 560 | 1350 | |
| ZRG-0.3 | Φ450 | 408 | 370 | 560 | 1420 | |
| ZRG-0.5 | Φ550 | 470 | 500 | 1230 | 1800 | |
| ZRG-1 | Φ720 | 570 | 550 | 1390 | 2015 |
