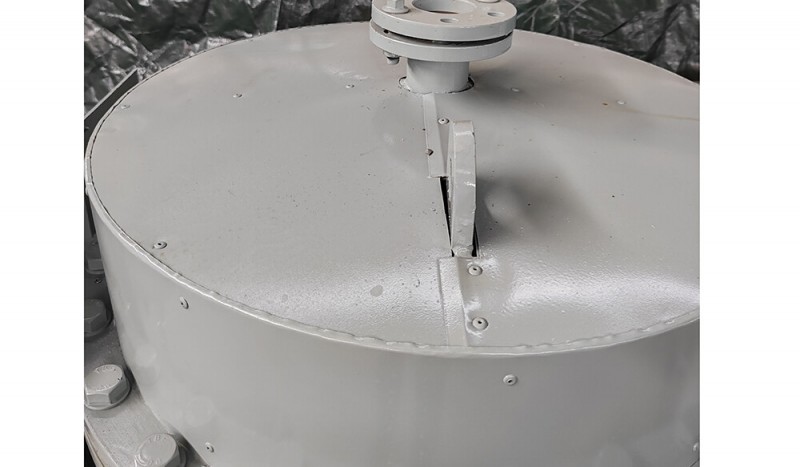

DRG-0.3 Marine Calorifier
Description:
This device adopts electric heating and is suitable for use on ships. Living area hot water, other equipment water supply, etc
This device has a simple structure, convenient operation, long service life, convenient maintenance, and low cost of replacing spare parts
Voltage, 380 V, 440 V, 415 V, 480 V, 220 V, 50 Hz, 60 Hz can be customized
| Type | Capacity | Design | Working Pressure | Water Inlet Temp℃ | Water Outlet Temp℃ |
| m3 | Mpa | Mpa | |||
| DRG-0.12 | 0.12 | 0.45 | 0.4 | 15 | 65 |
| DRG-0.2 | 0.2 | ||||
| DRG-0.3 | 0.3 | ||||
| DRG-0.5 | 0.5 | ||||
| DRG-1 | 1 | ||||
| Type | Hot-Water Capacity | Electric Heating | Power Source | Weight | |
| Kg/h | Power KW | Kg | |||
| DRG-0.12 | 180 | 12 | 380V 50HZ | 190 | |
| DRG-0.2 | 360 | 24 | 440V 60HZ | 225 | |
| DRG-0.3 | 540 | 36 | 300 | ||
| DRG-0.5 | 900 | 48 | 360 | ||
| DRG-1 | 1450 | 72 | 515 |
