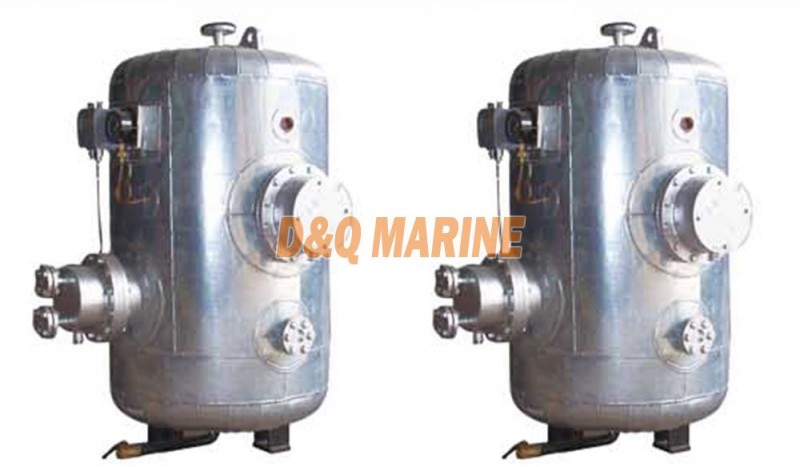

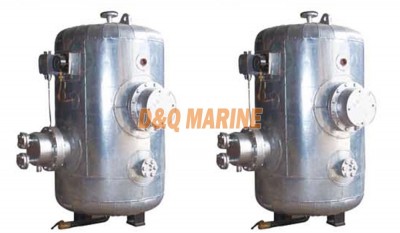

DZG Series Electric Steam Heating Calorifier
DZG Series Electric Steam Heating Calorifier：
This series electric steam heating calorifier is suitable for all kinds of ship which have the steam source or power source (AC 3P/380V/50Hz or AC 3P/440V/60Hz.) to product hot water, It can supply the hot water for crewmen。
Technical data:
| Type |
volume m3 |
Working Pressure | Inlet Temp. | Outlet Temp. | Steam Press |
| DZG-0.12 | 0.12 | 0.4Mpa | 15℃ | 65℃ | 0.3Mpa |
| DZG-0.2 | 0.2 | ||||
| DZG-0.3 | 0.3 | ||||
| DZG-0.5 | 0.5 | ||||
| DZG-1.0 | 1 | ||||
| DZG-1.5 | 1.5 | ||||
| DZG-0.12 |
Steam Heating Capacity kg/h |
Steam Consume kg/h |
Electric Heater Power KW |
Power Supply |
Weight kg |
| DZG-0.2 | 275 | 27.5 | 90 |
3P/380V/50HZ 3P/440V/60HZ |
210 |
| DZG-0.3 | 450 | 45 | 140 | 245 | |
| DZG-0.5 | 750 | 75 | 180 | 330 | |
| DZG-1.0 | 1200 | 120 | 280 | 400 | |
| DZG-1.5 | 3250 | 325 | 360 | 590 | |
| 4900 | 490 | 540 | 760 |
