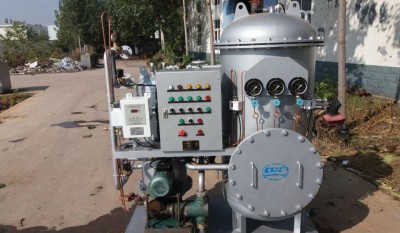

YSZ-5.0 Oily Water Separator
Category:
Oily Water Separator
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
YSZ-5.0 Oily Water Separator:
China YSZ-5.0 Oily Water Separator:

YSZ-5.0 Oily water separatorvery suitable marine large sized ship orOffshore platform and Petrochemical enterprises, we have been exported to the United States, Australia, the United Arab Emirates (UAE), southeast Asia, well received by overseas shipyard.

Description:

YSZ series 15ppm bilge water separator is designed and manufactured according to pollution protecting equipment manual and provisions of IMO MEPC.107(49) resolution technical specifications of bilge water of vessel machine location. The device is used for treatment of bilge water of different types of vessels.

Theory:

YSZ series 15ppm bilge water separator is gravity type oil filtering device. It is composed of separator, special pump, electric control chamber,15ppm bilge water alarm device, include filter assembly and other pipelines, valves and accessories etc. the separator adopts three-grade oil-filtering mode. The vessel bilge water is infused into first grade oil filtering of separator and make use of specific weight difference of water and oil to separate the floating oil from the water in the bilge water. The condensator in the second grade oil filtering chamber condensates and roughen to enable the tiny oil grain separate and float on the water surface. The bilge water after second grade treatment which reaches discharge standard will be drained directly outside board. If the bilge water to be drained reach discharge standard. The dirty oil which was separated accumulates on top of oil filtering chamber. The dirty oil will be discharge into dirty oil tank directly when they accumulate to a certain amount.

Technical Data:

Model Number YSZ-5.0
Treatment capability (m3 per hour) 5
Discharging standard Equal or less than 15ppm,satisfy with IMO MEPC.107 (49)
Working pressure Equal or less than 0.3 Mpa
Plunger pump Model DZ-5000
Discharing pressure(Mpa) 0.3
Suction lift(m) 6
Motor power(kw) 1.5
Electric heating power(kw) 3
Power supply 3 Phase 380V 50HZ, 3 Phase 440V 60HZ
Control mode Automatic
Oil drainage mode Automatic or manual
Weight(kg) 1500
