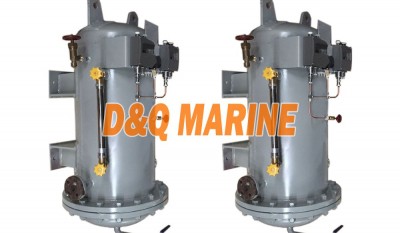

YLG-0.3A Type Wall-hanging type pressure water tank
Category:
Fresh Water Sea Water Pressure Tank
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
YLG-0.3A Type Wall-hanging type pressure water tank:
Description:

YLG-0.3A Type Wall-hanging type pressure water tank

The A Type Wall-hanging type pressure water tank can be used to provide fresh water for living and cleaning of ship and drilling platforms.

This device use compressed air to make to maintain constant pressure of the water in the tank, in order to supply the crew life water and machinery and equipment water.

The pressure water tank’s quality had approved by ABS CCS BV EC GL DNV, etc. So if you make a choice , please inform us the which certificate do you need .

Technical Data:

Type capacity
m3
Design
Pressure
Mpa
Wotking
Pressure
Mpa
DN A B B1 C d d1 h1 h2 h3 D1 D2 L H Weight
kg
A 0.12 0.7 0.6 400 608 656 361 Φ18 470 260 DN25 DN20 320 1187 130
0.2 500 708 756 411 Φ20 600 300 330 1304 170
0.3 600 808 856 461 600 300 DN32 370 1358 215
B 0.5 700 908 1034 593 Φ25 830 300 425 1641 330
1 900 1108 1234 693 950 450 DN40 DN32 525 2008 415
C 0.5 700 908 1034 593 Φ490 Φ25 1310 DN32 DN20 425 1759 330
1 900 1108 1234 693 Φ630 1578 DN40 DN32 525 2090 415
1.5 1000 1208 1330 744 Φ700 1835 570 2525 555
2 1200 1408 1540 844 Φ840 1937 DN50 600 2626 600
3 2659 3401 775

YLG-0.3A Type Wall-hanging type pressure water tank
