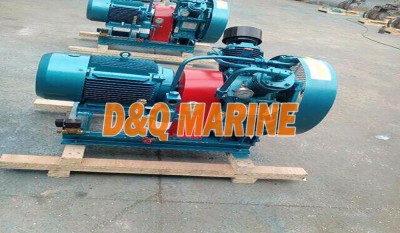

VLH-53 Marine Air Compressor
Category:
Marine Medium Pressure Air-cooled Series Air Compressor
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
VLH-53 Marine Air Compressor:
1.Main function

VLH-53 type air compressor is mainly used in ships and stationary diesel engine starting, also can be used as other industrial departments and the origin of compressed air pressure test

2.Institutional characteristics

VLH-53 for vertical air compressor, air cooled, two stage compression.

Compact structure, light weight, small size,using fan forced cooling copper fin cooler, cooling effect is good, reliable working in Marine conditions

3.The configuration

(1). The unit can be direct drive and belt drive, also can be used as diesel engine belt transmission, public base with oil-water separator, unloading electromagnetic valve, start - stop pressure controller, Export flange, the other with temperature control device, shock absorbers.

(2). The unit can match wall-mountable electric cabinet, which can realize the automatic unloading and automatic starting, automatic parking; Motor overload and exhaust temperature alarm and stop

Main Technical Parameter

Compressor Model VLH-53
Type 90°Vertical Air-Cooled,2 stage Compression
Quantity of Air Supply (m3/h) 45 50 60 74
Pressure Rating (MPa) 3
Rotation Rating (r/min) 900 1000 1200 1500
Lubricating System Splash Lubrication
Suction filtration Dry filter
Type of Unloader Manual unloading or electromagnetic valve of unloading
Method of Driving Direct Coupling,Belt Drive
Motor
Model Y180L-8-H Y180L-6-H Y180L-6-H Y180M-4-H
Power(kw) 11 15 15 18.5
Direct Coupling,Rotation (r/min) 880 970 1180 1470
Belt Drive,Rotation (r/min) 1460 1460 1460 1470
Voltage(V) 440 380 440 380
Frequency( HZ) 60 50 60 50
Shape size(mm) 1250×860×840,1450×700×920
Weight(kg) 450
