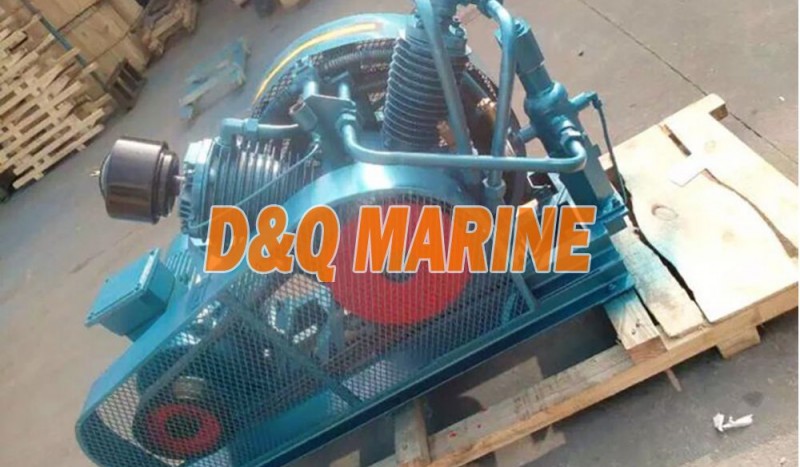

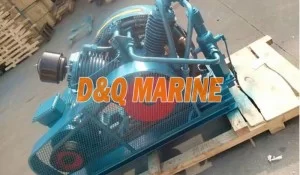

VLH-43 Marine Air Compressor:
1.Main function
VLH-43 air compressor is mainly used in ships and stationary diesel engine starting, also can be used as other industrial departments and the origin of compressed air pressure test
2.Institutional characteristics
(1).VLH-43 for vertical air compressor, air cooled, two stage compression.
(2).Compact structure, light weight, small size.
(3).Using fan forced cooling copper fin cooler, cooling effect is good, reliable working in Marine conditions.
3.The configuration
(1). The unit can be direct drive and belt drive, also can be used as diesel engine belt transmission, public base with oil-water separator, unloading electromagnetic valve, start - stop pressure controller, Export flange, the other with temperature control device, shock absorbers.
(2). The unit can match wall-mountable electric cabinet, which can realize the automatic unloading and automatic starting, automatic parking; Motor overload and exhaust temperature alarm and stop.
Main Technical Parameter
| Compressor Model | VLH-43 | |||
| Type | 90°Vertical Air-Cooled,2 stage Compression | |||
| Quantity of Air Supply (m3/h) | 23 | 26 | 32 | 40 |
| Pressure Rating (MPa) | 3 | |||
| Rotation Rating (r/min) | 900 | 1000 | 1200 | 1500 |
| Lubricating System | Splash Lubrication | |||
| Suction filtration | Dry filter | |||
| Type of Unloader | Manual unloading or electromagnetic valve of unloading | |||
| Method of Driving | Direct Coupling,Belt Drive | |||
| Motor | ||||
| Model | Y160L-8-H | Y160M-6-H | Y160L-6-H | Y160M-4-H |
| Power(kw) | 7.5 | 7.5 | 7.5 | 11 |
| Direct Coupling,Rotation (r/min) | 870 | 970 | 1170 | 1460 |
| Belt Drive，Rotation (r/min) | 1440 | 1440 | 1440 | 1460 |
| Voltage(V) | 440 | 380 | 440 | 380 |
| Frequency( HZ) | 60 | 50 | 60 | 50 |
| Shape size(mm) | 1050×740×750,1350×660×850 | |||
| Weight(kg) | 330 | |||
