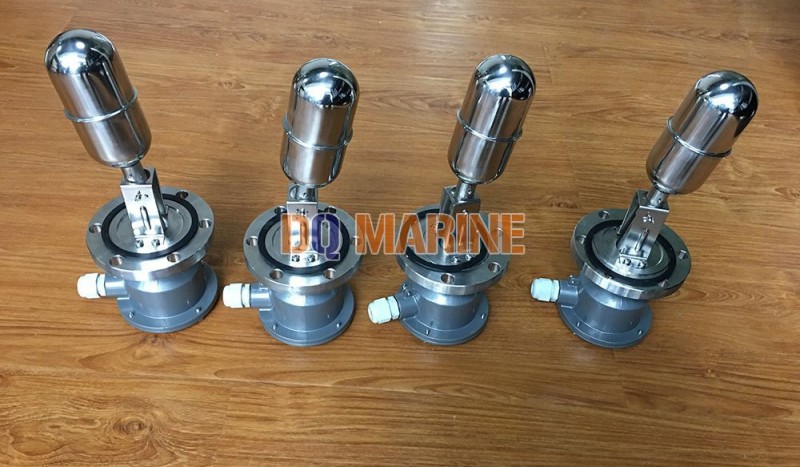

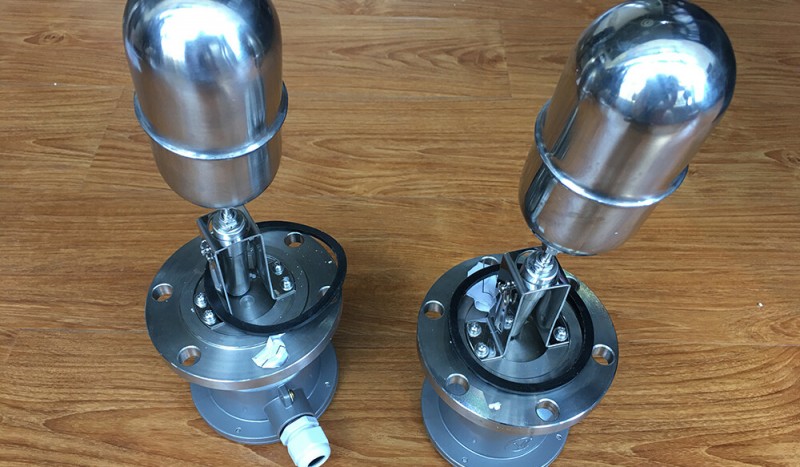

UQK-01-C Float Type Level Controller
China UQK-01-C Float Type Level Controller:
Marine Float Level Controller UQK-01 is widely used in the ship chemical industry and other industrial instrument to carry two place controlling and alarm to the level in liquid tank.
UQK-01/02/03 type float level controllers are applicable ships to control or alarm the level in the tanks, and also can be used in industry & mining, civil construction, technical research to control the level in various vessels. When the level reaches high or low limited position, the contact of the controller can be used as position alarm signal device or control switch for relative equipment.
Two. Main technical specification
1. Control range and mounting type
|
Model |
Control range (mm) |
Setting mode |
Mounting type |
|
UQK-01-C |
10 |
Nonadjustable |
Horizontal |
|
UQK-02-C |
25～550 |
Adjustable |
Horizontal |
|
UQK-03-C |
8～1000 |
Continuous |
Vertical |
2. Working pressure (liquid pressure in the vessel): ≤1 MPa
3. Working temperature (liquid temp. in the vessel): ＜120℃
4. Power supply and contact capacity: AC 220V 1.5A 110V 2.5A
DC 24～240V 2.5～0.5A
Life of contact: 3×104times
