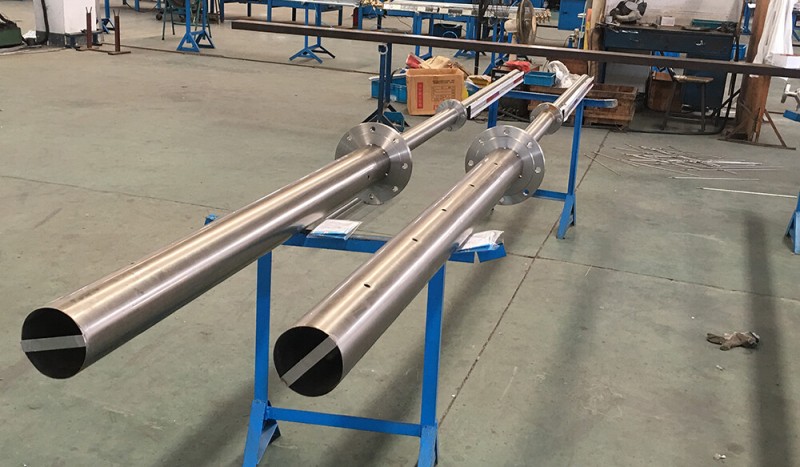

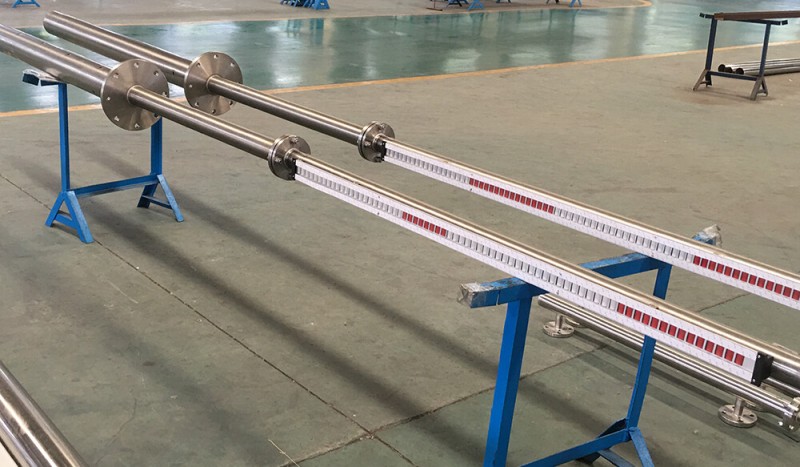

UHZ-515 magnetic float type level gauge
Product Description:
UHZ-515(top mounting type) magnetic float type level gauge are used to measure and control liquid level of liquid medium in underground tank.
Main Technical Specification:
Indication accuracy: ±20mm
Nonimal length: 0.5 meter to 3 meter
Medium gravity: equal or greater than 0.8
Working temperature 1.6MPa
Medium temperature: equal or less than 150 centigrade
Medium viscosity:equal or less than 0.01pa.S
Connection flange:CBM1012-81 DN125 PN5
Alarm switch: AC220V 1.0A retaining type(optional)
Output signal :DC24V 4~20mA (optional)
