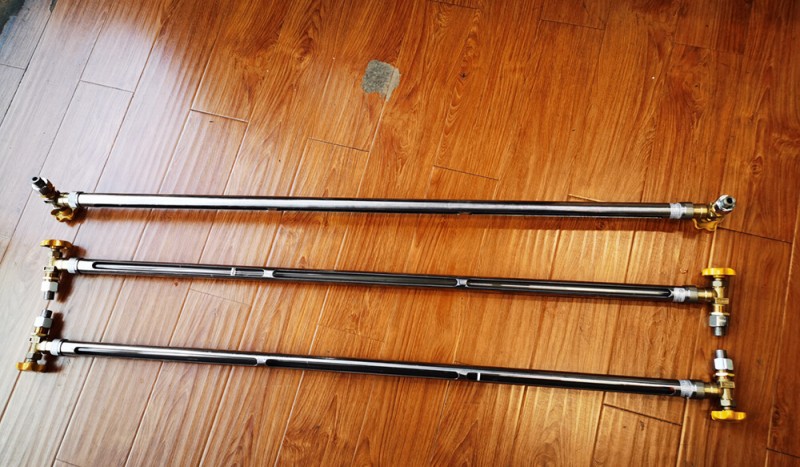

ULG Glass Tubular Level Gauge
It features novel design,easy to install,it is used to measure the liquid level of low viscosity medium.
We adivse client to choose this type when the tank length is short, or else the glass tube is easy to broken in transit.
Main Technical Specification:
| Model | Max working pressure | Working Temperature | Suitable medium | Conenction type | |
| ULG | 0.2Mpa | 0~100℃ | Oil,water | Welded type(H type) Flange type(F)CB/T 46-2007 DN20 PN16 | |
Product Characteristic: when the glass tube breaks accidentally, the inside valve can close automatically without liquid leakage.
