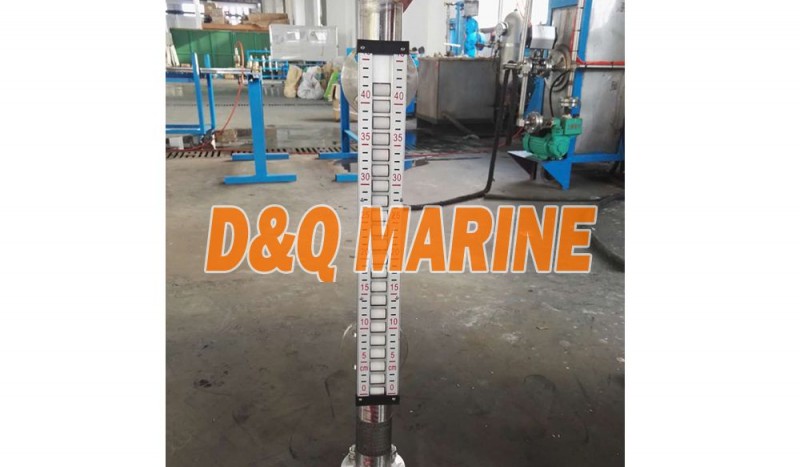

UHZ-511 Type Magnetic Float Type Level Gauge
China UHZ-511 Type Magnetic Float Type Level Gauge:
It can be used to measure and control the liquid level of tank in ship or other industrial equipment.
Specification:
Indication accuracy: ±20mm
Nonimal length: 0.5 meter to 6 meter
Medium gravity: equal or greater than 0.5
Working temperature 1.0(1.6,2.5)MPa
Medium temperature: equal or less than 120 centigrade
Connection flange:GB2506-2005 DN20 PN16
Alarm switch: AC220V 1.0A retaining type(optional)
Output signal :DC24V 4~20mA (optional)
Matched valve:shut-off valve ,self-close valve,ball valve(optional)
