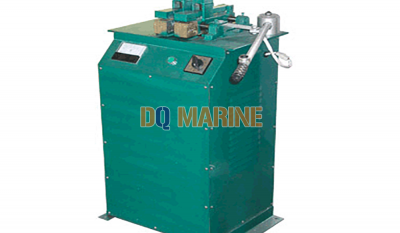

UN-25 Butt-welding Machine
UN-25 Butt-welding Machine Introduction
It uses the resistance butt welding method, the electric energy utilization ratio is high, and the welding effect is good. Widely used in wire and cable, enameled wire, steel wire rope factory and non-ferrous metal wire drawing industry.
Welding machine transformer adopts the shell structure, less consumption.
Small size, light weight, can be used without fixing, and easy to operate.
Adjustable current and pressure, easy and practical.
Increase pressure by springs (1-10 type), Increase pressure by lever (10-20 type).
Product Technical Parameter
| TYPE | UN-25 |
| Power Voltage | 380V |
| Rated Capacity | 25KVA |
| Secondary Voltage | 1.5-3.0 |
| Steel | 3.0-14.0mm |
| Aluminum | 3.0-10.0mm |
| Brass | 3.0-12.0mm |
| Pure Copper | 4.0-10.0mm |
