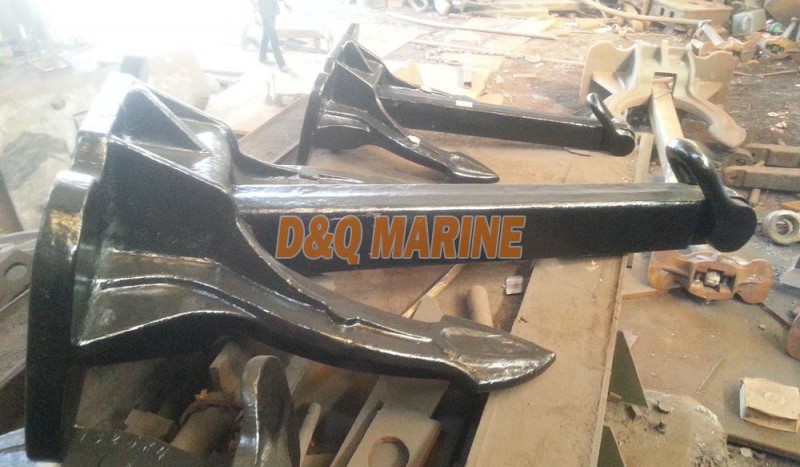

Type M SPEK Anchor:
China Type M SPEK Anchor:
SPEK Anchor has three types, TYPE M, TYPE SR, 95 SPEK Stockless anchor, easy use and convenient maintenance, weight from 100kgs to 26000kgs and all anchors can supply with class certificate as client request, please contact our sales team for inquiry.
SPEK Anchor Size and Weight
|
Nominal
Weight (KG) |
Size(mm) | |||||
| A | B | C | D | E | H | |
| 80 | 339 | 468 | 108 | 611 | 336 | 222 |
| 105 | 371 | 512 | 120 | 669 | 336 | 242 |
| 135 | 371 | 512 | 149 | 669 | 368 | 254 |
| 180 | 445 | 613 | 142 | 800 | 440 | 290 |
| 240 | 445 | 613 | 182 | 800 | 440 | 304 |
| 300 | 527 | 727 | 168 | 949 | 522 | 344 |
| 360 | 527 | 727 | 190 | 949 | 522 | 358 |
| 420 | 590 | 813 | 188 | 1062 | 584 | 385 |
| 480 | 590 | 813 | 211 | 1062 | 584 | 395 |
| 570 | 652 | 900 | 208 | 1175 | 647 | 428 |
| 660 | 653 | 900 | 236 | 1175 | 647 | 438 |
| 780 | 725 | 1000 | 231 | 1305 | 718 | 473 |
| 900 | 725 | 1000 | 264 | 1215 | 718 | 485 |
| 1020 | 793 | 1093 | 252 | 1428 | 785 | 518 |
| 1140 | 793 | 1093 | 277 | 1428 | 785 | 530 |
| 1290 | 858 | 1183 | 273 | 1544 | 850 | 561 |
| 1440 | 858 | 1183 | 299 | 1544 | 850 | 573 |
| 1590 | 920 | 1268 | 293 | 1655 | 911 | 604 |
| 1740 | 920 | 1268 | 315 | 1655 | 911 | 611 |
| 1920 | 980 | 1350 | 312 | 1761 | 970 | 640 |
| 2100 | 980 | 1350 | 337 | 1761 | 970 | 650 |
| 2280 | 1038 | 1430 | 331 | 1866 | 1027 | 678 |
| 2460 | 1038 | 1430 | 355 | 1866 | 1027 | 688 |
| 2640 | 1090 | 1500 | 347 | 1959 | 1079 | 712 |
| 2850 | 1190 | 1500 | 380 | 1950 | 1079 | 722 |
| 3060 | 1144 | 1578 | 365 | 2058 | 1133 | 748 |
| 3300 | 1144 | 1578 | 387 | 2058 | 1133 | 760 |
| 3540 | 1202 | 1656 | 383 | 2159 | 1189 | 785 |
| 3780 | 1202 | 1656 | 405 | 2159 | 1189 | 787 |
| 4050 | 1257 | 1732 | 400 | 2258 | 1244 | 821 |
| 4320 | 1257 | 1732 | 422 | 2258 | 1244 | 831 |
| 4590 | 1257 | 1732 | 444 | 2258 | 1244 | 841 |
| 4890 | 1338 | 1846 | 426 | 2405 | 1325 | 874 |
| 5250 | 1338 | 1846 | 450 | 2405 | 1325 | 888 |
| 5610 | 1432 | 1974 | 431 | 2405 | 1418 | 936 |
| 6000 | 1432 | 1974 | 457 | 2577 | 1418 | 936 |
| 6450 | 1432 | 1974 | 483 | 2577 | 1418 | 950 |
| 6900 | 1533 | 2112 | 462 | 2757 | 1518 | 1001 |
| 7350 | 1533 | 2112 | 488 | 2757 | 1518 | 1001 |
| 7800 | 1533 | 2112 | 514 | 2757 | 1518 | 1015 |
| 8300 | 1621 | 2234 | 489 | 296 | 1605 | 1059 |
| 8700 | 1621 | 2234 | 517 | 2916 | 1605 | 1059 |
| 9300 | 1621 | 2234 | 545 | 2916 | 1605 | 1074 |
| 9900 | 1726 | 2380 | 520 | 3015 | 1709 | 1128 |
| 10500 | 1726 | 2380 | 550 | 3105 | 1709 | 1128 |
| 11100 | 1726 | 2380 | 580 | 3105 | 1709 | 1138 |
| 11700 | 1819 | 2507 | 554 | 3273 | 1701 | 1188 |
| 12300 | 1819 | 2507 | 580 | 3273 | 1701 | 1188 |
| 12900 | 1819 | 2507 | 607 | 3273 | 1701 | 1200 |
| 13500 | 1904 | 2624 | 577 | 3425 | 1885 | 1243 |
| 14100 | 1904 | 2624 | 607 | 3425 | 1885 | 1243 |
| 14700 | 1904 | 2624 | 650 | 3425 | 1885 | 1243 |
| 15400 | 1904 | 2782 | 657 | 3425 | 1885 | 1263 |
| 16100 | 2018 | 2782 | 612 | 3632 | 1998 | 1318 |
| 16900 | 2018 | 2782 | 638 | 3632 | 1998 | 1318 |
| 17800 | 2018 | 2782 | 683 | 3632 | 1998 | 1318 |
| 18800 | 2018 | 2782 | 699 | 3632 | 1998 | 1343 |
| 20000 | 2170 | 2990 | 652 | 3905 | 2148 | 1416 |
Please send us the weight, quantity and class certificate if any when inquiry.
