Type A steel small size hatch cover

Category: Hatch Cover
Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
FOB Price: Get Latest Price Now
Warranty: 12 Months unless specified otherwise
Place of Origin: China
Request a Quote Print Page Print Page

We can supply according to your requirement.

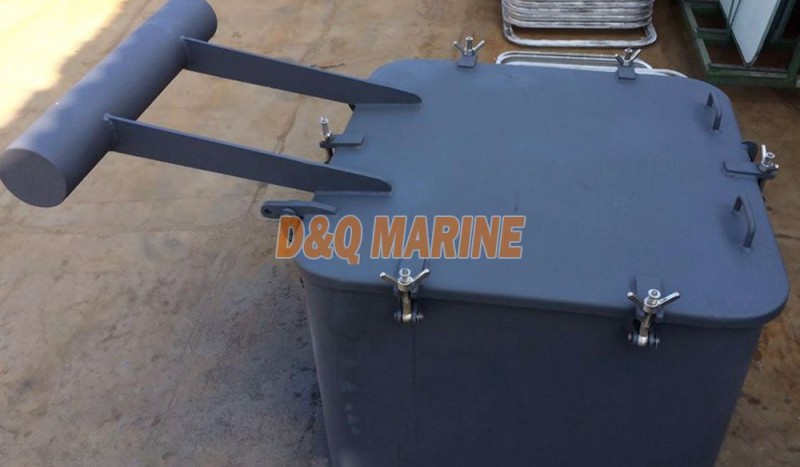

Type A steel small size hatch cover

Type A steel small size hatch cover:

It used in ship to more convenient chheck.

Technical Data:

TYPE NOMINAL SIZE SIZE OF CLEAR OPENING SIZE OF COVER
L B L1 B1 R L2 B2
A


AL


AS 		450 630 420 600 100 508 688
512 692
516 696
530 530 500 500 100 588 588
592 592
596 596
630 630 600 600 100 688 688
692 692
696 696
630 830 600 800 100 688 888
692 892
696 896
830 830 800 800 100 888 888
892 892
896 896
830 1230 800 1200 100 888 1288
892 1292
896 1296
1030 1030 1000 1000 100 1092 1092
1096 1096
1330 1330 1300 1300 100 1396 1396
SIZE OF COVER HATCH BUTTERFLY CLIP WEIGHT
Kg
t Thinkness H DIA QUT
4 4 6 100

150

200

250

450

600 		M16 4 24.4
6 6 8 31.1
8 8 11 37.7
4 4 6 24.2
6 6 8 30.8
8 8 11 37.4
4 4 6 M20 31
6 6 8 39.8
8 8 11 48.5
4 4 6 37.4
6 6 8 48.5
8 8 11 59.7
4 4 6 6 47.1
6 6 8 61.2
8 8 11 75.3
4 4 6 8 65.2
6 6 8 85.3
8 8 11 800 175.2
6 6 8 6 146.4
8 8 11 190.9
8 8 11 8 331.3
