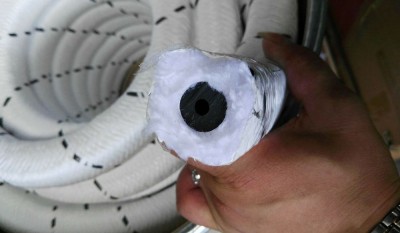

Tank Lid Packing 38x38 mm:
Constructions
Specially developed to seal marine cargo tank lids. The PTFE outer cover gives complete protection to the packing and is abrasion resistant. The unique core construction enables the packing to be welded together to form an endless seal, thus preventing the chance of any leakage at the joint.
Performance
Max. Temperature 100
Pressure 1 Bar
PH 1 to 14
Applications
For static cargo or chemical tanks, and acids, alkalis, oils, solvents, chemicals and edible products
In coils or cut to size upon request. Also available in square or rectangular sections as required.
Parameter specification
| Square Section | Rectangular Section | ||
| IMPA CODE | Size (mm) | IMPA CODE | Size （mm） |
| 810721 | 20×20 | 810726 | 20×15 |
| 810722 | 25×25 | 810727 | 30×20 |
| 810723 | 35×35 | 810728 | 35×25 |
| 810724 | 38×38 | 810729 | 40×30 |
| 810725 | 40×40 | ||
