Series of Marine Sound Signals Type D:
China Series of Marine Sound Signals Type D:
Series of Marine Sound SignalsSound announciator is an important and simple tool for communication on ships. An alarm can send out special signal in time to indicate the
occurrence of certain abnormal phenomenon, at the same time, it is also used as marine telephone, communication device, command alarm and other electrical appliances on ships.
Suitable environmental temperature: -25 ℃ ~+55 ℃.
It can reliably work when the power voltage ranges within + 15 % for DC current, +6% ~-10% for AC current ofits rated voltage, and its sound
intensity will not lower than the value stipulated.
The protection class IP56.
Cable outside diameter Φ 14- Φ 16.
Drawing:
Specification:
| type | voltage | current | sound intensity | weight | |
| DC sounder | YM-24Z | 24V | 0.1A | 95dB | 1.8kg |
| YM-110Z | 110V | 0.05A | 95dB | 1.8kg | |
| YM-220Z | 220V | 0.03A | 95dB | 1.8kg | |
| AC sounder | YM-24J | 24V | 0.15A | 95dB | 1.8kg |
| YM-110J | 110V | 0.08A | 95dB | 1.8kg | |
| YM-220J | 220V | 0.04A | 95dB | 1.8kg |

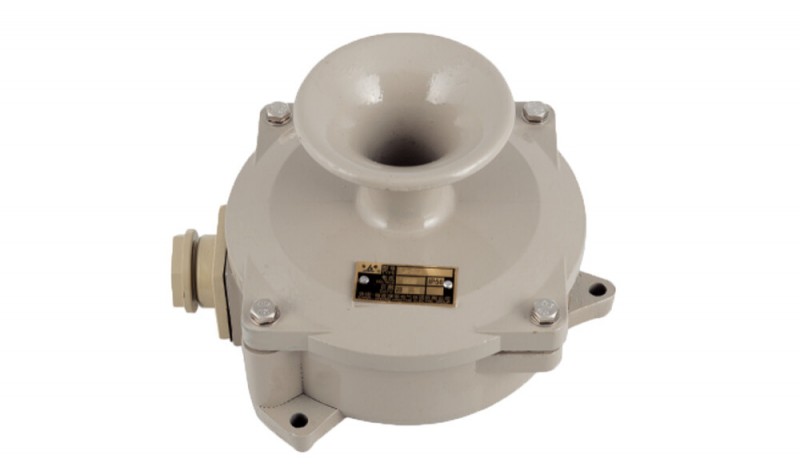

Picture:
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
