RG Series Coaxial Cables 50 Ω/75 Ω

Basic Parameters

Cable Feature:These radio frequency cables are suitable for high frequency data transmission (communication equipment, radar, instrumentation equipment) and video signal transmission

Bending Radius: 10×OD

Temperature Range: -30℃ ~ +60℃

Stanards

MIL C 17 (RG)

IEC 60092-359

IEC 60332-1

IEC 60754-1/2

IEC 61034

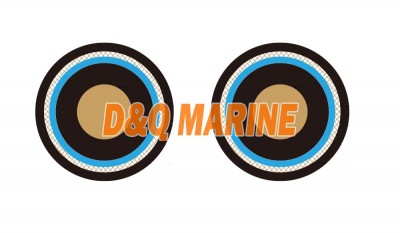

Construction

Conductors: Solid or stranded TC (Tinned copper), BC (Bare copper), BCW (Bare copperweld), SC (Silvered copper) and SPCCS (Silver plated copper on steel).

Insulation: Foam PE.

Fire Barriers: Aluminium foil.

Screen: Single or double braid. Bare, tinned or silvered copper.

Outer Sheath: LSOH (SHF1).
