QSB Series Submersible Sand Pump
Category:
Marine Submersible pump
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.

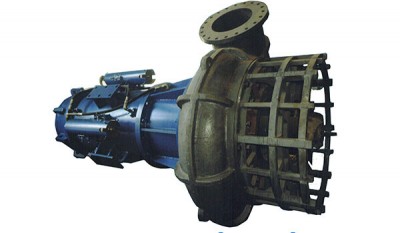

QSB Series Submersible Sand Pump:
China QSB Series Submersible Sand Pump:

QSB series submersible sand pump is single stage centrifugal pump which is specially designed to mine underwater sand and gravel in river,lake sea as well as undersea mining. The structure design and materials of the pump have been considered thoughfully to make the pump operate under water permanently, reliably and effectively. It has the characters of corrosion-resistance,wearing-resistance,high ability of passing solid,wide-range of submersible depth. The maximum value of submersible depth is up to 150m, and its function won't be impacted as the depth varied. Just putting the pump on the bottom of sea or river, it can work at any angle of placement, therefore,it is ideal and efficient equipment for sand collection and undersea mining.

Main Technical Data

Model Capacity
m³/h
Head
m
Rev speed
r/min
Motor power
KW
QSB-0501-4P5 50 35 2900 18.5
QSB-0502-4P5 50 22 2900 11
QSB-101-4P5 100 40 2900 37
QSB-102-4P5 100 24 2900 22
QSB-1.501-4P5 150 40 2900 45
QSB-1.502-4P5 150 23 2900 37
QSB-301-4P5 300 40 2900 90
QSB-302-4P5 300 21 2900 55
QSB-501-6P5 500 40 2900 140
QSB-502-6P5 500 21 2900 90
QSB-9.501-6P5 950 40 2900 185
QSB-9.502-6P5 950 25 2900 110
QSB-1501-8P5 1500 40 2900 400
QSB-1502-8P5 1500 21 2900 250
QSB-2001-8P5 2000 40 2900 550
QSB-2002-8P5 2000 24 2900 350
QSB-2801-10P5 2800 40 2900 750
QSB-2802-10P5 2800 24 2900 400
