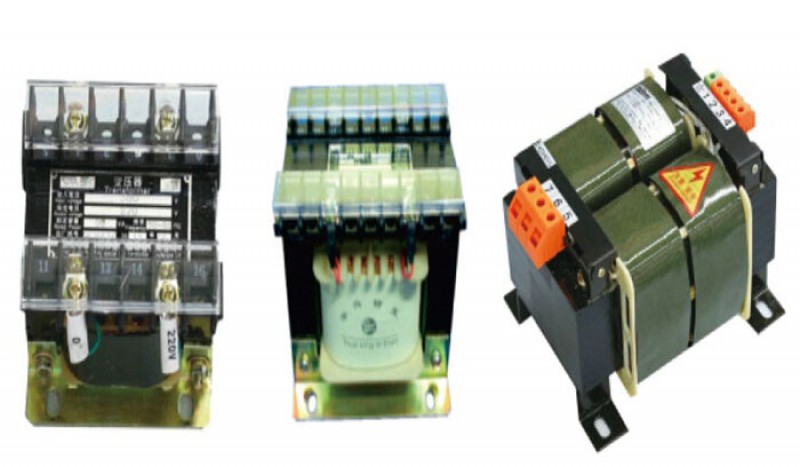

CXK Marine Transformer Used On Ship
China CXK Marine Transformer Used On Ship:
The CXK marine transformer is suitable for lighting, control and isolation power. It adopts the shell or heart structure is compact, fastening, good heat dissipation effect, strong load capacity, etc. It can provide with the shell (IP22, IP23) and without shell structure.
| Type | Capacity (kVA) | No-load loss(W) | Load current(%) | No-load current(%) |
| CXK-25 | 25 | 1 | 3 | 50 |
| CXK-50 | 50 | 2 | 5 | 40 |
| CXK-100 | 100 | 3 | 10 | 40 |
| CXK-150 | 150 | 4 | 13.5 | 25 |
| CXK-200 | 200 | 5 | 15 | 22 |
| CXK-250 | 250 | 6 | 18 | 22 |
| CXK-300 | 300 | 7 | 20 | 30 |
| CXK-400 | 400 | 8 | 24 | 25 |
| CXK-500 | 500 | 16 | 25 | 18 |
| CXK-630 | 600 | 18 | 29 | 17 |
| CXK-800 | 750 | 20 | 32 | 16 |
| CXK-1000 | 1000 | 22 | 45 | 16 |
| CXK-1500 | 1500 | 31 | 48 | 15 |
| CXK-2000 | 2000 | 40 | 65 | 14 |
| CXK-2500 | 2500 | 48 | 70 | 11 |
| CXK-3000 | 3000 | 55 | 75 | 12 |
| CXK-4000 | 4000 | 65 | 95 | 11 |
| CXK-5000 | 5000 | 80 | 125 | 10 |
