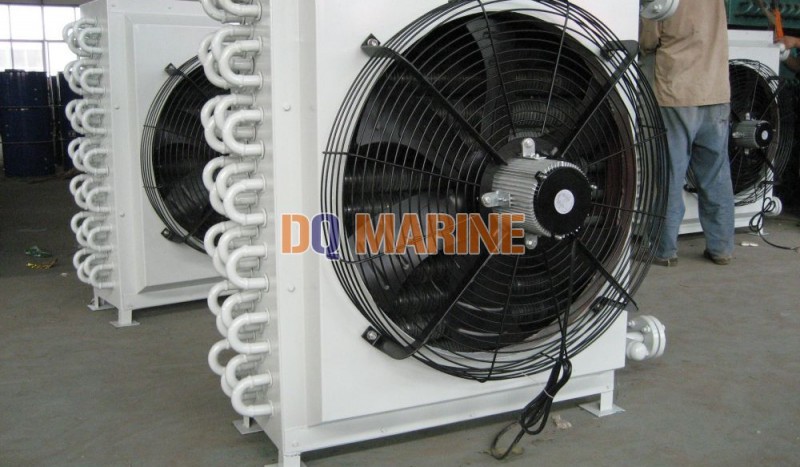

NCBH Marine Explosion Proof Heater Air Fan
Description:
NCBH Marine explosion-proof heater
The Marine anti-explosion fan heater of NCBH apply to the heating system of ship and the anti-explosion chemical environment. The fan heating adopts anti-explosion motor AC 380V/440V 3P 50/60Hz.
Technical Data:
| Type | Heating Medium |
Heat supply quantity KW |
Air volume (m3/h) |
Outlet temperature ℃ |
Inlet Temperature℃ |
Outlet velocity m/s |
Noise dB(A) |
Motor power (kw) |
Weight (kg) |
| NCBH-30 | 0.4MPa steam | 43 | 2500 | 66 | 15 | 3 | 58 | 1400 | 54 |
|
|
hotwater | 22 | 41 | ||||||
| NCBH-60 | 0.4MPa steam | 75 | 5000 | 60 | 15 | 3.6 | 69 | 1390 | 97 |
|
|
hotwater | 32 | 34 | ||||||
| NCBH-90 | 0.4MPa steam | 126 | 7100 | 66 | 15 | 3.3 | 75 | 910 | 126 |
|
|
hotwater | 53 | 36 | ||||||
| NCBH-125 | 0.4MPa steam | 255 | 10000 | 80 | 15 | 3.3 | 70 | 940 | 212 |
|
|
hotwater | 71 | 43 |
Dimension:
| Type | A | B | D | F | G | H | h | I | Φ |
| NCBH-30 | 533 | 540 | 248 | 128.5 | 203 | 680 | 295 | 550 | 400 |
| NCBH-60 | 689 | 696 | 312 | 128.5 | 267 | 836 | 382 | 667 | 600 |
| NCBH-90 | 845 | 852 | 370 | 128.5 | 345 | 992 | 451 | 690 | 700 |
| NCBH-125 | 1020 | 1010 | 440 | 156 | 420 | 1152 | 535 | 830 | 800 |
