MRE-M2XCH Mica Tape & XLPE Insulated Individual Screened & Armoured Cables
Category:
IEC60092 Standard Offshore & Marine Cables
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
MRE-M2XCH Mica Tape & XLPE Insulated Individual Screened & Armoured Cables:

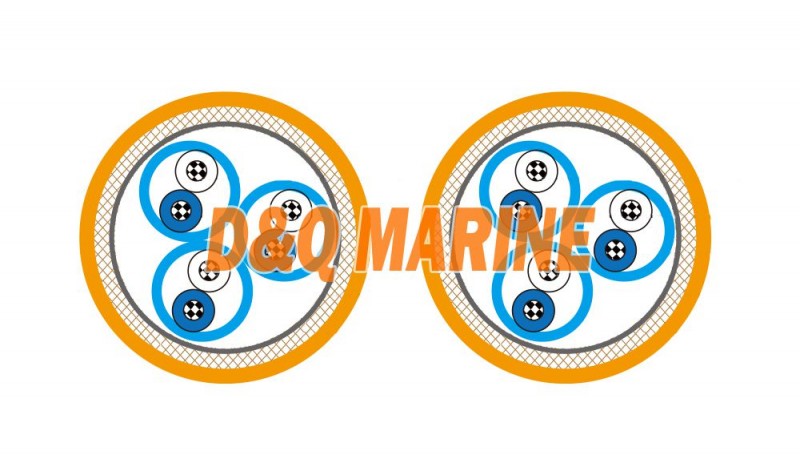

MRE-M2XCH Mica Tape & XLPE Insulated Individual Screened & Armoured Cables
Basic Parameters

Cable Feature: PiMF/TiMF 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Individual Screened & Armoured Fire Resistant.

Bending Radius: 6×OD

Temperature Range: -30℃ ~ +80℃

Standards

IEC 60092-350/351/376/359, IEC 60331-21, IEC 60332-1, IEC 60332-3-22, IEC 60754-1/2, IEC 61034.

Construction

Conductors: Class 2 stranded copper conductor.

Insulation: Mica tape + XLPE.

Cabling Element: Pair/Triple.

Individual Screen: Al/polyester tape.

Drain Wire: Tinned copper wire.

Inner Covering: Lapped polyester tape.

Armour: Copper wire braid.

Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.
