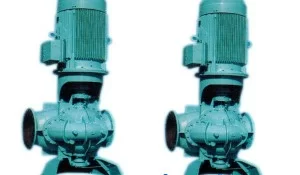

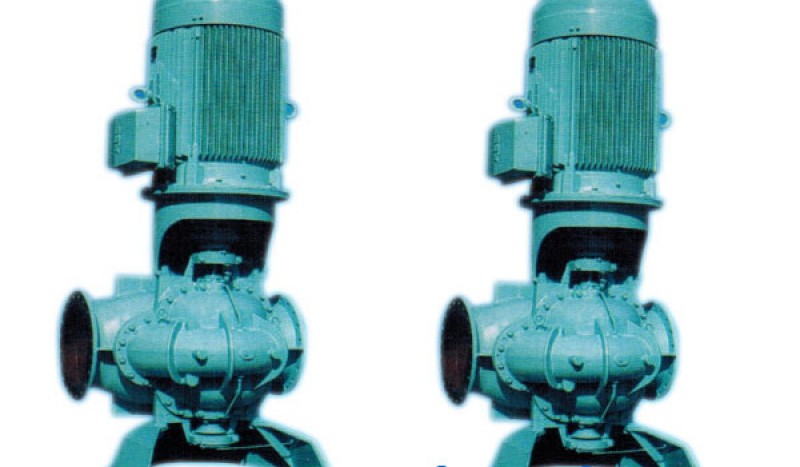

LSC Series Marine Vertical Split-casing Centrifugal Pump:
China LSC Series Marine Vertical Split-casing Centrifugal Pump:
LSC series marine vertical spit-casing centrifugal pump is used to transport sea water or fresh water, as cooling,fire-fighting,bilge ballast and other general drainage device,it also can be used for dockyard,power plant and water conservancy project.
Vertical structure can save the space for vessel.
Double suction,signal stage impeller can balance the shaft power and make it more stable and long-use.
Centrifugal structures is good for impeller to avoid erode and makes it use longer.
Usually the pump is make by good quality composite material,pump body with copper alloy or high silicon nodular cast iron,the shaft with stainless steel material,impeller with copper alloy or manganese stainless steel,these can meet different requirement.
Construction of pump
Main Technical Data
| Model |
Flow rate Q m³/h |
Lift H (m) |
Rev speed r/min |
Motor power (KW) |
| LSC150-35 | 260/200/150 | 30/35/40 | 1470 | 37 |
| LSC150-35A | 220/180/140 | 27/30/34 | 1470 | 30 |
| LSC150-35B | 180/150/130 | 23/30/28 | 1470 | 22 |
| LSC200-45 | 360/320/250 | 40/45/50 | 1470 | 75 |
| LSC200-45A | 330/290/220 | 35/40/45 | 1470 | 55 |
| LSC200-45B | 300/260/200 | 32/36/40 | 1470 | 45 |
| LSC250-34 | 700/600/450 | 30/34/38 | 1470 | 90 |
| LSC250-34A | 640/550/410 | 25/28/31 | 1470 | 75 |
| LSC250-34B | 580/500/370 | 20/22/25 | 1470 | 45 |
| LSC300-38 | 900/700/600 | 33/38/41 | 1470 | 110 |
| LSC300-38A | 800/640/540 | 27/32/35 | 1470 | 90 |
| LSC300-38B | 720/560/480 | 23/27/30 | 1470 | 75 |
| LSC350-21 | 1300/1000/800 | 17/21/25 | 1470 | 90 |
| LSC350-21A | 1180/900/720 | 14/17/20 | 1470 | 75 |
| LSC350-21B | 1060/820/650 | 12/14/16 | 1470 | 55 |
| LSC400-33 | 1500/1300/1000 | 30/33/36 | 1470 | 160 |
| LSC400-33A | 1350/1180/900 | 25/27/29 | 1470 | 132 |
| LSC400-33B | 1200/1060/820 | 20/22/24 | 1470 | 90 |
| LSC450-34 | 1800/1600/1400 | 32/34/24 | 1470 | 200 |
| LSC450-34A | 1620/1440/1260 | 26/28/30 | 1470 | 160 |
| Also have bigger pumps, pls contact us for more information. | ||||
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
