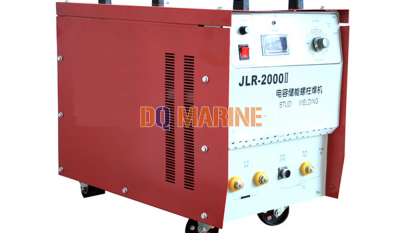

JLR-2000 Capacitive Storage Stud Welding Machine:
JLR-2000 Capacitive Storage Stud Welding Machine Introduction
It mainly used for the size less than M10 stud, reliable, and continuous working.
The biggest power input among the series of capacitive storage stud welding machine.
Two series of independent discharging system inside.
Product Technical Parameter
| TYPE | JLR-2000 |
| Power Voltage | 110V±10% 50HZ |
| 220V±10% 50HZ | |
| 380V±10% 50HZ | |
| Input Power | 1200VA |
| Charging Voltage | 30V-180V (Continuous Adjustment) |
| Discharging Time | 3ms-6ms |
| Stud Diameter | M3-M10 (mm) |
| Efficiency | 30/min |
| Weight | 52KG |
| Overall Size | 630mmx420mmx610mm |
