IHF Series Marine Fluoroplastic Lined Centrifugal Pump:
China IHF Series Marine Fluoroplastic Lined Centrifugal Pump:
IHF centrifugal pump is designed according to international standards. The pump body adopts metal shell lined with polyperfluoroethylene propylene (F46).The pump cover, impeller and shaft sleeve are all made of metal insert outsourcing fluoroplastic integral sintering molding, and the shaft seal is made of externally mounted bellows mechanical seal.Its biggest advantage is advanced and reasonable structure, strong corrosion resistance, tight and reliable sealing performance, stable work, low noise, long service life.

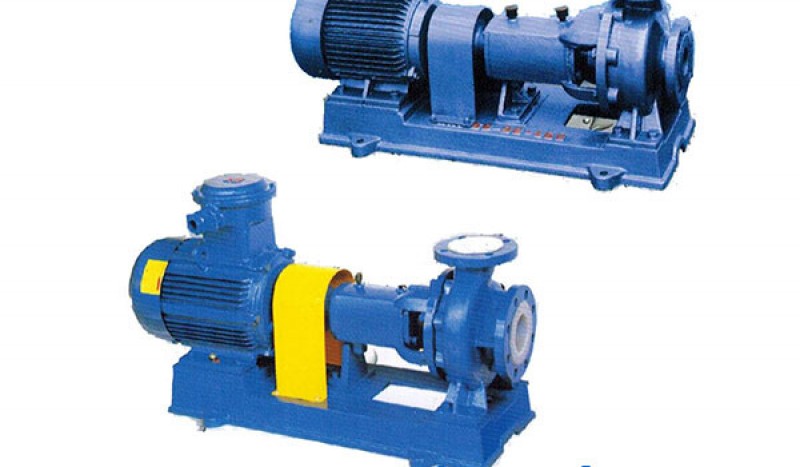

IHF Series Marine Fluoroplastic Lined Centrifugal Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| IHF50-32-125 | 12.5 | 20 | 2900 | 2.2 |
| IHF50-32-160 | 12.5 | 32 | 2900 | 4 |
| IHF50-32-200 | 12.5 | 50 | 2900 | 7.5 |
| IHF65-50-125 | 25 | 20 | 2900 | 3 |
| IHF65-50-160 | 25 | 32 | 2900 | 5.5 |
| IHF65-40-200 | 25 | 50 | 2900 | 11 |
| IHF80-65-125 | 50 | 20 | 2900 | 5.5 |
| IHF80-65-160 | 50 | 32 | 2900 | 15 |
| IHF80-50-200 | 50 | 50 | 2900 | 11 |
| IHF100-80-125 | 80 | 20 | 2900 | 15 |
| IHF100-80-160 | 80 | 32 | 2900 | 30 |
| IHF100-65-200 | 80 | 50 | 2900 | 30 |
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
