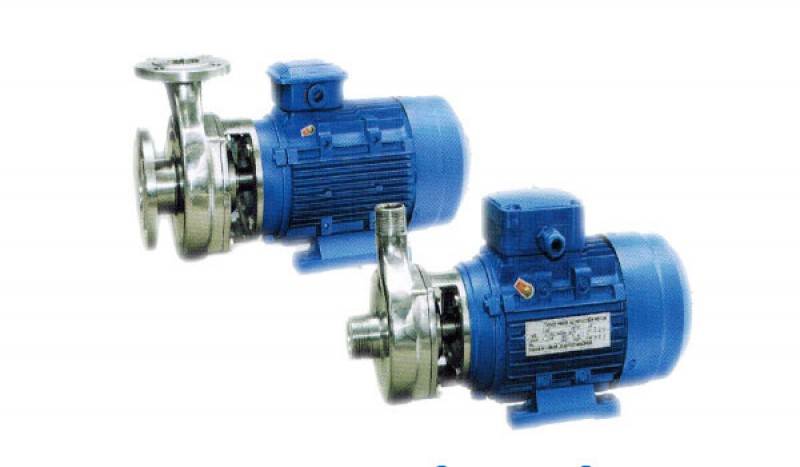

HBF Series Stainless Steel Corrosion Pump
China HBF Series Stainless Steel Corrosion Pump:
HBF and HBFX is corrosion resistant stainless steel centrifugal pump series, this series of pump impeller some use half open structure, others adopt closed structure, in addition, the pump and motor coupling way and straight association-like and belt bearing bracket type two kinds, all of the pump shaft seal adopts the Germany advanced technology of cantilever type mechanical seal, because the products of our company with excellent structure, performance, modeling, and parts and connecting frame is made of high quality stainless steel material, so, this series of products with corrosion resistant performance is reliable, convenient operation and maintenance, compact structure, low energy consumption, good sealing performance, and a series of advantages.
Main Technical Data
| Model |
Capacity m³/h |
Head m |
efficiency % |
Motor power KW |
| 25HBF-8 | 7.5 | 3 | 43 | 0.25 |
| 40HBF-13 | 13 | 5 | 45 | 0.55 |
| 40HBF-13A | 13 | 5 | 45 | 0.75 |
| 50HBF-18 | 21 | 10 | 52 | 1.5 |
| 20HBF-22 | 28.5 | 12 | 55 | 2.2-11 |
| 50HBF-25 | 31 | 12 | 56 | 3 |
| 25HBFX-8 | 10 | 4 | 40 | 0.25 |
| 25HBFX-13 | 10 | 4 | 40 | 0.55 |
| 25HBFX-13A | 18.5 | 8 | 40 | 0.75 |
| 40HBFX-18 | 23.8 | 14 | 49 | 1.5 |
| 50HBFX-20 | 23 | 14 | 50 | 2.2-11 |
| 50HBFX-22 | 23.8 | 14 | 50 | 3 |
| 50HBFX-25 | 23.8 | 14 | 50 | 3 |
