FY Series Underwater Pump
  • FY Series Underwater Pump

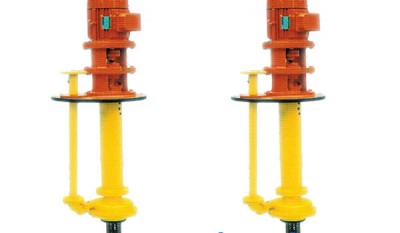

FY Series Underwater Pump

Request a QuoteDownload Catalogue pdf file
We can supply according to your requirement.

China FY Series Underwater Pump:

FY series liquid pump is a new type of pump based on the traditional corrosion resistant liquid pump and improved design.The pump eliminated the other hydraulic pump commonly used mechanical seal box selected a unique structure of the impeller, so that the pump efficient energy saving, no leakage, long life, and widely used in various industries.

Main Technical Data

Model Capacity
m³/h
Head
m
Rev speed
r/min
Motor power
KW
25FY-16 3.6 16 2900 1.5
25FY-16A 3.27 13 2900 1.5
25FY-25 3.6 25 2900 2.2
25FY-25A 3.27 20 2900 2.2
25FY-41 3.6 41 2900 4
25FY-41A 3.27 33 2900 3
40FY-16 7.2 16 2900 2.2
40FY-16A 6.55 13 2900 1.5
40FY-26 7.2 26 2900 3
40FY-26A 6.55 21 2900 3
40FY-40 7.2 40 2900 5.5
40FY-40A 6.55 32 2900 5.5
50FY-16 14.4 16 2900 3
50FY-16A 13.1 13 2900 3
50FY-25 14.4 25 2900 4
50FY-25A 13.1 20 2900 3
50FY-40 28.8 40 2900 7.5
50FY-40A 26.2 33 2900 5.5
65FY-16 28.8 16 2900 4
65FY-16A 26.2 13 2900 3
65FY-25 28.8 25 2900 5.5
Also have bigger pumps, pls contact us for more information.

Packing and Delivery:

1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.

How to Order?

1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
