CWB Series Marine Magnetic Drive Vortex Pump:
China CWB Series Marine Magnetic Drive Vortex Pump:
Magnetic drive vortex pump USES magnetic drive structure, to ensure that the pump can be absolutely sealed, no leakage conveying corrosive, flammable, explosive, toxic and other chemical media.

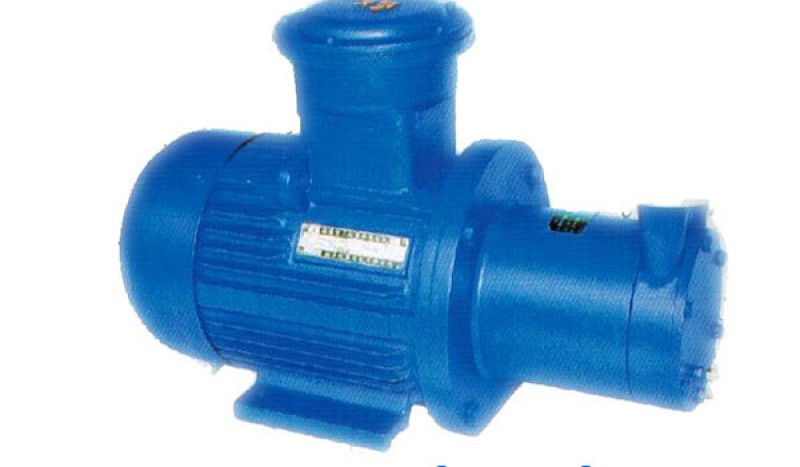

CWB Series Marine Magnetic Drive Vortex Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| CWB20-20 | 0.72 | 20 | 2900 | 0.75 |
| CWB20-40 | 0.72 | 40 | 2900 | 0.75 |
| CWB20-65 | 0.72 | 65 | 2900 | 1.5 |
| CWB25-25 | 1.44 | 25 | 2900 | 0.75 |
| CWB25-40 | 1.44 | 40 | 2900 | 1.5 |
| CWB25-75 | 1.44 | 75 | 2900 | 3 |
| CWB32-30 | 2.88 | 30 | 2900 | 1.5 |
| CWB32-50 | 2.88 | 50 | 2900 | 2.2 |
| CWB32-75 | 2.88 | 75 | 2900 | 4 |
| CWB32-120 | 2.88 | 120 | 2900 | 5.5 |
| CWB40-40 | 5.4 | 40 | 2900 | 4 |
| CWB40-90 | 5.4 | 90 | 2900 | 7.5 |
| CWB50-45 | 9 | 45 | 2900 | 5.5 |
| CWB65-50 | 14.4 | 50 | 2900 | 11 |
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
