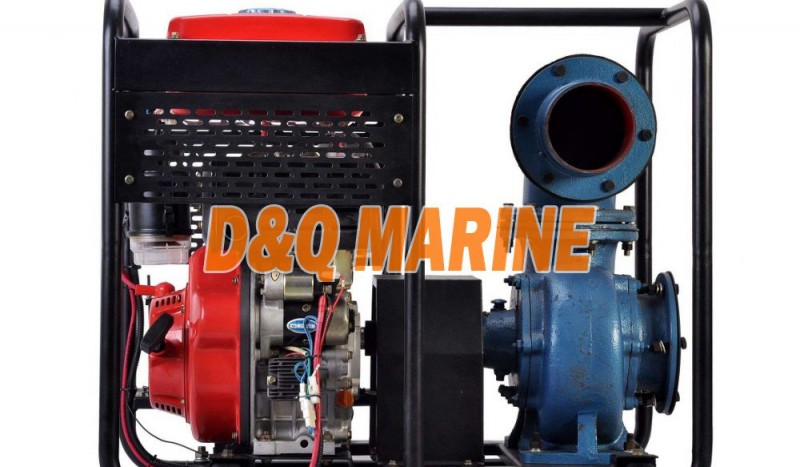

Diesel high pressure pump
Diesel high pressure pump Technical parameter:
|
Set
|
Model
|
40HB-1.5D
|
50HB-2D
|
|
Name
|
High pressure pump
|
|
Inlet/Outlet diameter
|
40mm(1.5")
|
50mm(2")
|
|
Cont. Capacity(m3/h)
|
20
|
30
|
|
Cont. Head lift(m)
|
55
|
65
|
|
Max.Suction head(m)
|
8
|
8
|
|
Engine
|
Engine model
|
178F
|
186F
|
|
Engine type
|
Single
cylinder,4-stroke,air cooled diesel engine
|
|
Displacement(CC)
|
296
|
418
|
|
Max.output power(HP)
|
7
|
10
|
|
Rated spee(RPM)
|
3600
|
3600
|
|
Fuel consumption ratio(g/kw.h)
|
<283
|
<280
|
|
starting method
|
Recoil start
|
|
Fuel tank capacity(L)
|
3.3
|
5.5
|
|
Options
|
Electric starter
|
Available
|
Available
|
|
Oil annunciator
|
Available
|
Available
|
|
Pack
|
Packing size(mm)
|
575x460x575
|
575x460x575
|
|
Net weight(Kgs)
|
46
|
62
|
|
Gross weight(Kgs)
|
48
|
64
|
|
20FT Qty
|
192
|
192
|
