D Series Marine Multistage Centrifugal Pump
China D Series Marine Multistage Centrifugal Pump:

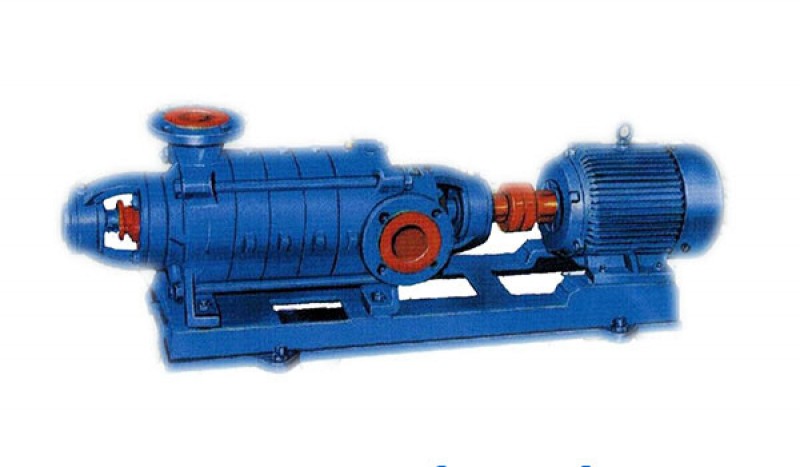

Type D pump is a single-suction multistage segmental centrifugal pump, used for conveying clear water and liquids similar to water in physical and chemical properties.The pump head H23 to 153.6 meters, the flow of 12.6 to 39.6m /h.The highest temperature should not exceed 80 ℃ liquid.
D Series Marine Multistage Centrifugal Pump
Main Technical Data
| Model | Capacity m³/h | Head m | Rev speed r/min | Motor power KW |
| 50D8 | 18 | 19-114 | 2950 | 2.2-11 |
| 80D12 | 32.4 | 22.7-136.2 | 2920 | 3-18.5 |
| 100D16 | 54 | 35.4-211.2 | 2940 | 11-55 |
| 125D25 | 108 | 40-240 | 2950 | 22-110 |
