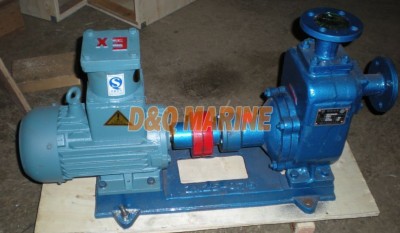

CWX vortex pump:
CWX vortex pump
CWX series self-suction centrifugal whirlpool pump is supplied for marine in pumping fresh water and sea water for drinking, washing and sanitation. It also be used for boiler feedback and water circulate.
Model explanation
1.5CWX-2
1.5: The effective valve for inlet and outlet diameter divided by 25(integer)
C: Marine use
WX: centrifugal whirlpool pump
2: Specific revolution divided by 10.
Parameter
| Technical data sheet 380V/50Hz | |||||
| Model | Capacity | Head | Speed | Motor power | Suction head |
| m3/h | m | rpm | kw | m | |
| 1.5CWX-2 | 3 | 40 | 2840 | 2 | 6 |
| 1.5CWX-3 | 7 | 35 | 2880 | 2 | 6 |
| 1.5CWX-4 | 10 | 35 | 2890 | 2.7 | 6 |
| 2CWX-2 | 12 | 45 | 2900 | 3.2 | 6 |
| 2CWX-3 | 16 | 42 | 2900 | 3.6 | 6 |
| 2CWX-4 | 22 | 40 | 2900 | 5 | 6 |
| 2CWX-5 | 20 | 60 | 2900 | 7.2 | 6 |
| 2.5CWX-2 | 25 | 40 | 2900 | 5.2 | 6 |
| 2.5CWX-3 | 30 | 45 | 2900 | 7.5 | 6 |
| 2.5CWX-4 | 35 | 60 | 2900 | 10.2 | 6 |
