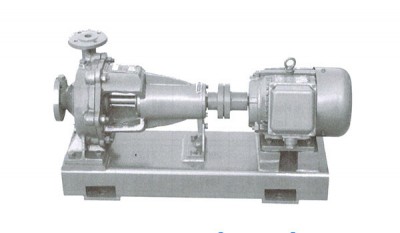

CWL Series marine horizontal centrifugal pump
China CWL Series marine horizontal centrifugal pump:
CWL series Marine horizontal centrifugal pump is compact in structure, small in volume and good in reliability.When equipped with self-priming device, it can be used as bilge pump.It can also be used in factories, mines, urban water supply and rural irrigation.
CWL Series marine horizontal centrifugal pump
Main Technical Data
| Model | Capacity m³/h | Head m | Rev speed r/min | Motor power KW |
| 32CWL-3 | 4 | 30 | 2950 | 1.5 |
| 32CWL-4 | 4 | 21 | 1.1 | |
| 40CWL-3 | 8 | 42 | 3 | |
| 40CWL-4 | 8 | 30 | 2.2 | |
| 50CWL-3.5 | 8 | 21 | 1.1 | |
| 50CWL-4 | 21 | 60 | 7.5 | |
| 50CWL-4.5 | 12 | 42 | 4 | |
| 50CWL-5 | 12 | 30 | 3 | |
| 50CWL-6 | 21 | 42 | 5.5 | |
| 50CWL-7 | 12 | 21 | 1.5 | |
| 50CWL-8 | 21 | 30 | 4 | |
| 65CWL-6 | 21 | 21 | 3 | |
| 65CWL-8 | 35 | 30 | 5.5 | |
| 65CWL-11 | 35 | 21 | 1.5 | |
| 80CWL-5.5 | 35 | 42 | 4 | |
| 80CWL-6 | 60 | 30 | 3 | |
| 80CWL-8 | 60 | 21 | 7.5 | |
| 80CWL-11 | 60 | 75 | 5.5 | |
| 80CWL-14 | 60 | 60 | 4 | |
| 100CWL-6 | 100 | 42 | 22 | |
| 100CWL-8 | 100 | 30 | 18.5 | |
| Also have bigger pumps, pls contact us for more information. | ||||
