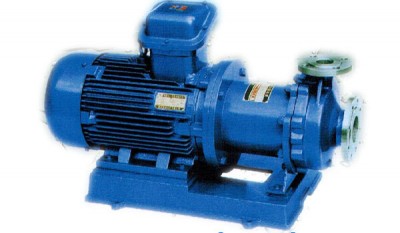

CQB Series Marine Magnetic Drive Centrifugal Pump:
China CQB Series Marine Magnetic Drive Centrifugal Pump:
Magnetic drive centrifugal pump (referred to as magnetic pump), usually by the motor, magnetic coupling and corrosion resistant centrifugal pump composition.Its main feature is the use of magnetic coupling transfer power, completely without leakage, when the motor driven magnetic coupling external magnetic steel rotation, the magnetic line through the gap and isolation sleeve, acting on the internal magnetic steel, is the pump rotor and motor synchronous rotation, no mechanical contact to transfer torque.At the power input end of the pump shaft, because the liquid is enclosed in a static isolation sleeve, there is no dynamic seal and therefore no leakage.
CQB Series Marine Magnetic Drive Centrifugal Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| CQB32-20-125 | 3.2 | 20 | 2900 | 1.1 |
| CQB32-20-160 | 3.2 | 32 | 2900 | 1.5 |
| CQB40-25-105 | 6.3 | 50 | 2900 | 1.1 |
| CQB40-25-125 | 6.3 | 8 | 2900 | 2.2 |
| CQB40-25-160 | 6.3 | 12.5 | 2900 | 3 |
| CQB40-25-200 | 6.3 | 15 | 2900 | 5.5 |
| CQB40-25-250 | 12.5 | 11 | 2900 | 1.1 |
| CQB65-50-125 | 12.5 | 17.5 | 2900 | 2.2 |
| CQB65-50-160 | 12.5 | 20 | 2900 | 3 |
| CQB50-32-160 | 12.5 | 20 | 2900 | 4 |
| CQB50-32-200 | 12.5 | 32 | 2900 | 7.5 |
| CQB50-32-250 | 12.5 | 50 | 2900 | 18.5 |
| CQB65-50-150 | 25 | 25 | 2900 | 5.5 |
| CQB65-50-160 | 25 | 32 | 2900 | 7.5 |
| CQB65-50-180 | 25 | 38 | 2900 | 15 |
| CQB65-40-200 | 25 | 50 | 2900 | 22 |
| CQB80-65-160 | 50 | 32 | 2900 | 7.5 |
| CQB80-50-200 | 50 | 50 | 2900 | 15 |
| CQB100-80-160 | 50 | 32 | 2900 | 18.5 |
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
