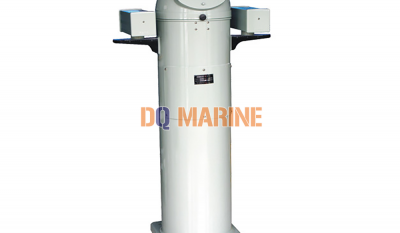

CPL-165 Vertical Magnetic Compass
Category:
Navigation Aid System
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
CPL-165 Vertical Magnetic Compass:
CPL-165 Vertical Magnetic Compass Introduction

CPL-165vertical Magnetic Compass is a sort of class A transparent liquid magnetic compass. It is designed and manufactured in accordance with the national standard GB/T 14108-2011 (General Technical Terms of Marine Magnetic Compass Class A). The magnetic compass is suitable for the large and middle vessels acting as standard compass or steering compass and is used for measuring azimuth and indicating course heading. The product has the advantages of high precision, convenient correcting difference, steady performance and legible lighting etc.

CPL-165 Main Technical Parameter

Dial graduation 0°~360° 1°for each grid
Using temperature -25℃~+60℃
ndicating deviation (H=35μT,T=20±3℃) ≤0.5°
Half period(H=35μT,T=20±3℃) ≥8.62 S
Friction deviation(H=35μT,T=20±3℃) ≤0.09°
Main semicircle self heterodyne correcting energy 1°~45°
Secondary semicircle self heterodyne correcting energy 1°~6°(magnetic inclination Q=45°)
Quadrant self heterodyne correcting energy 0.5°~10°
Inclining self heterodyne correcting energy -75~+75μT
Lighting power supply AC 220V,DC 24V
Outline Dimension 720×430×1200mm
Diameter of mounting holes Pitchrow 420 ApertureΦ16
weight 33kg
