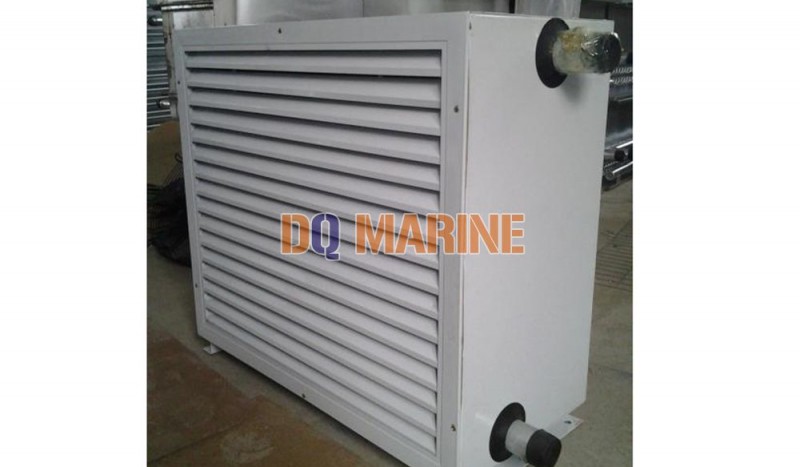

CNFS Marine Hot Water Heating Air Fan Unit
Description:
CNFS Marine hot-water heating unit, the heating unit, with90℃hot water as the heating medium, is a critical equipment in main engine room, auxiliary machinery compartment and other compartments. When the ship is pulled in and the ambient temperature is close to 0℃, the unit must be started to keep the temperature in each compartment above 0℃to avoid the damage of the equipment and pipelines inside due to low temperature and facilitate the preparation for next voyage of the ship.

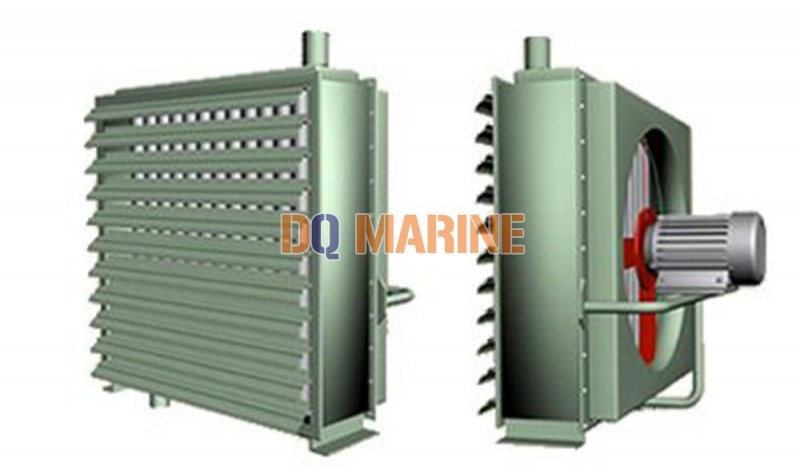

The equipment is composed of heat radiation coil pipe and axial fan.
Technical Data:
| Type | CNFSZ324 | CNFSZ334 | CNFSZ524 | CNFSZ534 | |
| Heating Capacity KW | 15.81 | 18.72 | 28.37 | 41.28 | |
| Heating water temp.(In/Out) | 90/70 | 90/70 | 90/70 | 90/70 | |
| Heating water consumption Kg/h | 678 | 805 | 1220 | 1775 | |
| Water press. Drop | 326 | 340 | 1280 | 2000 | |
| Air flow m3/h | 2350 | 2330 | 5050 | 4980 | |
| Supply air temp.℃ | 37.3 | 41.6 | 33.6 | 42.5 | |
| Fan motor power kw | 0.2 | 0.2 | 0.37 | 0.37 | |
| Noise dB(A) | ≤63 | ≤63 | ≤70 | ≤70 | |
| Weight Kg | 33 | 39 | 50 | 60 | |
| Dimension | L(mm) | 600 | 600 | 750 | 750 |
| L1(mm) | 490 | 490 | 590 | 590 | |
| H(mm) | 600 | 600 | 750 | 750 | |
| W(mm) | 450 | 450 | 550 | 550 | |
| B(mm) | 240 | 240 | 280 | 280 | |
| B1(mm) | 140 | 140 | 215 | 215 | |
| DN(mm) | 25 | 25 | 32 | 32 | |
