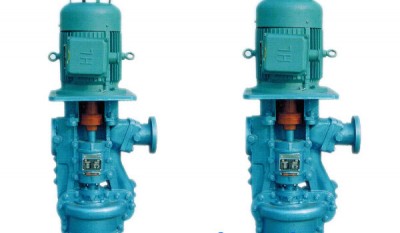

CLZ Series Marine Vertical Self-suction Centrifugal Pump
China CLZ Series Marine Vertical Self-suction Centrifugal Pump:
CCBL series marine vertical self-suction centrifugal pump can be used to convey shipping press carry cabin bottom water,deliver ballast tank water of the boats and ships serve the purpose of cooling,fire control,etc. It also can be used to convey sea water and fresh water,or other liquid that no exceed 70℃ in temperature.
External installation dimension
Main Technical Data
| Model | Flow rate Q m³/h | Lift H (m) | Rev speed r/min | Motor power (KW) |
| 50CLZ-30 | 20 | 30 | 2900 | 5.5 |
| 80CLZ-30 | 45 | 30 | 2900 | 11 |
| 80CLZ-40 | 40 | 40 | 2900 | 11 |
| 80CLZ-50 | 40 | 50 | 2900 | 15 |
| 100CLZ-30 | 90 | 30 | 2900 | 15 |
| 150CLZ-30 | 162 | 30 | 2900 | 30 |
| 200CLZ-30 | 288 | 30 | 2900 | 45 |
| 440V/60HZ | ||||
| Model | Flow rate Q m³/h | Lift H (m) | Rev speed r/min | Motor power (KW) |
| 50CLZ-30 | 24 | 42 | 3480 | 11 |
| 80CLZ-30 | 54 | 42 | 3480 | 15 |
| 80CLZ-40 | 48 | 57 | 3480 | 18.5 |
| 80CLZ-50 | 48 | 72 | 3480 | 22 |
| 100CLZ-30 | 108 | 42 | 3480 | 30 |
| 150CLZ-30 | 194 | 42 | 3480 | 45 |
| 200CLZ-30 | 345 | 42 | 3480 | 75 |
| Also have bigger pumps, pls contact us for more information. | ||||
CLZ Series Marine Vertical Self-suction Centrifugal Pump Performance
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
