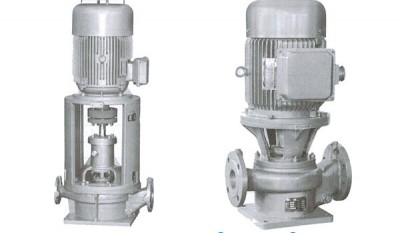

CLH Series marine vertical sea-water pump
China CLH Series marine vertical sea-water pump:
CLH Marine vertical sea pump series in accordance with the "Marine vertical sea pump" and the relevant ISO international standards designed by a new centrifugal pump.It is suitable for all kinds of ships and ships as ballast pump, bilge pump, cooling pump, drainage pump, fire pump, and also can be used as supporting water pump for seawater desalination plant, as well as booster pump for petrochemical pipeline, cold and hot water circulation system and domestic water for high-rise buildings.
CLH Series marine vertical sea-water pump
Main Technical Data
| Model | Capacity m³/h | Head m | Rev speed r/min | Motor power KW |
| CLH125-100-5/2 | 51/51 | 30/60 | 1450 | 22 |
| CLH125-100-7/2 | 80/40 | 25/55 | 18.5 | |
| CLH125-100-9/2 | 116/58 | 21/61 | 22 | |
| CLH125-100-9/2B | 112/54 | 15/52 | 18.5 | |
| CLH125-100-10/2 | 110/50 | 20/35 | 15 | |
| CLH150-125-6/2 | 95/95 | 39/82 | 45 | |
| CLH150-125-6/2A | 95/70 | 32/80 | 37 | |
| CLH150-125-17/2 | 149/95 | 27.5/77 | 45 | |
| CLH150-125-17/2A | 141/95 | 16.5/60.5 | 37 | |
| CLH150-125-12/2 | 199/99 | 23.5/70 | 45 | |
| CLH200-150-7/2 | 257/124 | 33.5/77 | 55 | |
| CLH200-150-7/2A | 199/182 | 23.5/65 | 45 | |
| CLH200-150-7/2B | 348/174 | 17/60.5 | 37 | |
| CLH200-150-13/2 | 265/166 | 24/68.5 | 45 | |
| CLH250-200-9/2 | 389/182 | 33/79 | 55 | |
| CLH250-200-9/2A | 265/166 | 22/71.5 | 45 | |
| CLH250-200-9/2B | 389/182 | 14.5/62 | 37 | |
| CLH250-200-19/2 | 348/174 | 22/70 | 55 |
