CWX Series marine centrifugal vortex pump
China CWX Series marine centrifugal vortex pump:
CWX Marine centrifugal vortex pump is used for drinking water, washing and sanitation of the ship.

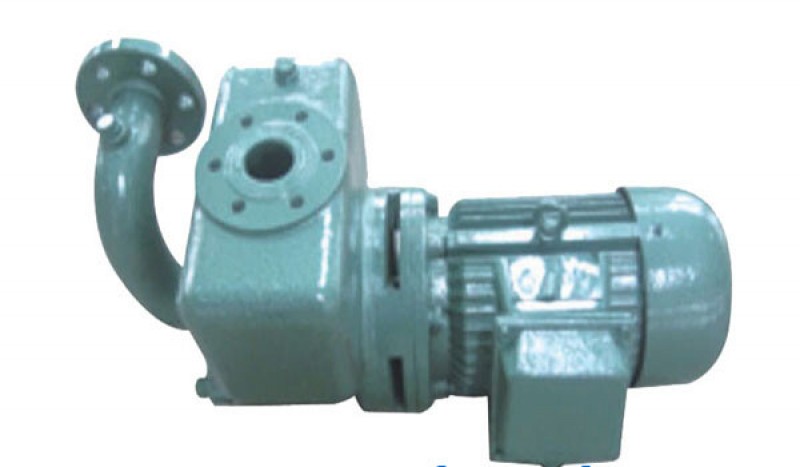

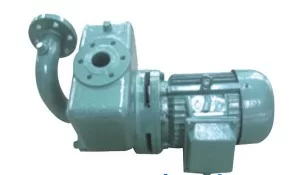

CWX Series marine centrifugal vortex pump
Main Technical Data
| Model |
Flow rate Q m³/h |
Lift H (m) |
Rev speed r/min |
Motor power (KW) |
| 1.5CWX-2 | 3 | 40 | 2900 | 2.2 |
| 1.5CWX-2A | 3 | 40 | 2900 | 2.2 |
| 1.5CWX-3 | 6.5 | 35 | 2900 | 3 |
| 1.5CWX-3A | 6.5 | 35 | 2900 | 3 |
| 1.5CWX-4 | 10 | 35 | 2900 | 4 |
| 1.5CWX-4A | 10 | 35 | 2900 | 4 |
