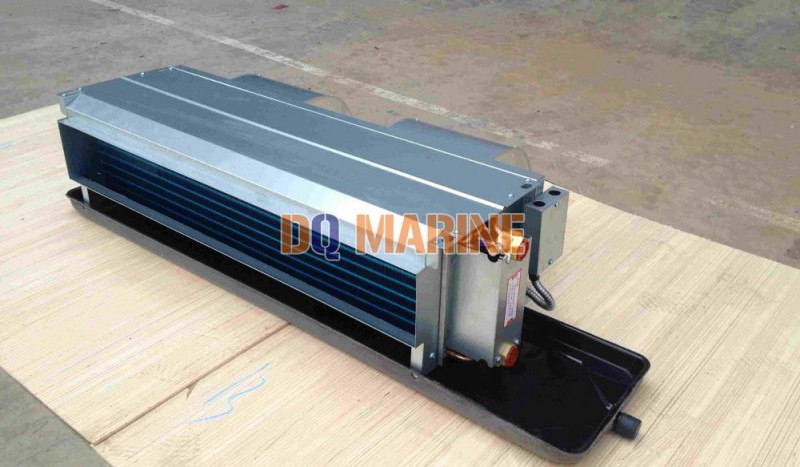

CFP-WAB Super Thin Horizontal Hidden Type Fan Coil
Descroption:
CFP-BGM,WAB,ZH fan coil has new design, beautiful appearance, simple installation, convenient operation, low noise, small volume and save energy etc. which is suitable for medium and small sized navy, such as suppress smuggling boat, patrol boat and luxurious yacht etc.
Technical Data:
| Type | CFP-7.0WAB | CFP-10WAB | CFP-12WAB | CFP-16WAB | CFP-24WAB | CFP-30WAB | |
| Cooling capacity | Kw | 2 | 3 | 3.5 | 4.7 | 7 | 8.8 |
| Btu/hr | 7000 | 10000 | 12000 | 16000 | 24000 | 30000 | |
| Heating capacity | Kw | 2.2 | 3.3 | 3.85 | 5.17 | 7.7 | 9.7 |
| Btu/hr | 7500 | 11000 | 13000 | 17600 | 26000 | 33000 | |
| Air flow | high m3/h | 350 | 500 | 630 | 800 | 1400 | 1600 |
| mid m3/h | 300 | 400 | 505 | 640 | 1140 | 1280 | |
| low m3/h | 210 | 300 | 380 | 480 | 890 | 980 | |
| Water flow m3/h | 370 | 520 | 650 | 830 | 1400 | 1550 | |
| Diameter of Inlet/outlet | RC1/2 thread or DN 15 hose | RC3/4 thread or DN 20 hose | |||||
| Power supply | 220V 50Hz 1Φ |
|
|||||
| Total Power W | 40 | 40 | 40 | 70 | 135 | 145 | |
| Current A | 0.35 | 0.4 | 0.4 | 0.9 | 1.1 | 1.2 | |
| Dimension | L mm | 650 | 800 | 990 | 1090 | 1150 | 1360 |
| W mm | 350 | 350 | 350 | 350 | 350 | 350 | |
| H mm | 230 | 230 | 230 | 230 | 230 | 230 | |
| Weight kg | 15 | 17 | 19 | 21 | 28 | 32 | |
