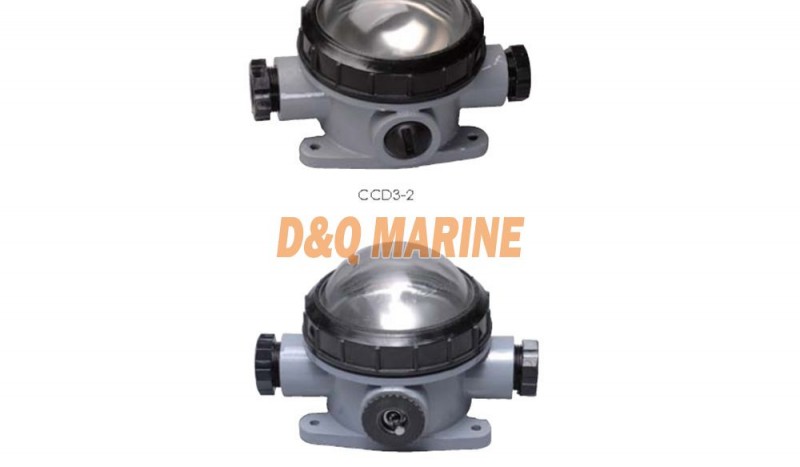

CCD3-2/CCD3-3 Incandescent Pendant Light
The scope of application
Applied to the illumination for deck, side walk and wet places or cabin of ships.
Products feature
1. The structure of light is simple, has good waterproof function.
2. The cable outside diameter is Φ10～Φ12mm.
3. CCD3-3 with switch
Adopt standard and product certification
1. Conform to INTERNATIONAL STANDARDIEC60598-1-2008.
2. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
3. Conform to GB/T3027 Marine incandescent lamps General technical requirements.
Installation
CCD3-2/CCD3-3 Incandescent Pendant Light Specification
| Type | CDD3-2 | CDD3-3 |
| Color | Transparent/Frosted/Opal/Red/Green/Blue/Yellow | |
| Voltage(V) | 24 | |
| Light source | Incandescent Lamp | |
| Power(W) | 25 | |
| Lamp Holder | B15d | |
| Material | Engineering Plastic/Brass/Stainless Steel | |
| Protection Class | IP55 | |
| Weight(kg) | 0.52 | |
