CBZ centrifugal pump:

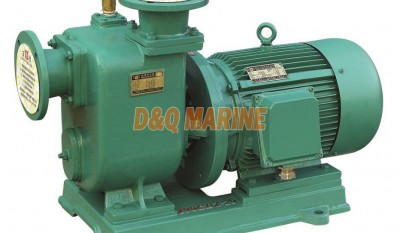

CBZ Series Self-priming marine pump
CBZ Series Self-priming marine pump is applicable for delivering water and other liquid which is like water in physico chemical properties.The maximum temperature of the liquid shall not be above 80C. CBZ Series self-priming marine pump shall be used for water supply and discharging for ships.
Model Explanation:
50CBZ-35
50:The diameter of inlet and outlet pipes of pump(mm)
C: For ship usage
B: Arm type single suction centrifugal
Z: Self priming
35: Head(m)
Parameter
| Technical data sheet 380V/50Hz | ||||||
| Model | Capacity | Head | Efficiency | Speed | Motor power | Suction head |
| m3/h | m | % | rpm | kw | m | |
| 32CBZ-21 | 8 | 21 | 35 | 2950 | 1.5 | 5 |
| 32CBZ-30 | 8 | 30 | 36 | 2950 | 2.2 | 5 |
| 32CBZ-42 | 8 | 42 | 38 | 2950 | 4 | 5 |
| 40CBZ-20 | 12 | 20 | 58 | 2880 | 1.5 | 5 |
| 40CBZ-21 | 12 | 21 | 35 | 2950 | 2.2 | 5 |
| 40CBZ-32 | 6.5 | 32 | 40 | 2900 | 2.2 | 5 |
| 40CBZ-30 | 12 | 30 | 40 | 2950 | 3 | 5 |
| 40CBZ-42 | 12 | 42 | 40 | 2950 | 4 | 5 |
| 50CBZ-21 | 21 | 21 | 45 | 2950 | 3 | 5 |
| Model | Capacity | Head | Efficiency | Speed | Motor power | Suction head |
| m3/h | m | % | rpm | kw | m | |
| 50CBZ-30 | 21 | 30 | 45 | 2950 | 4 | 5 |
| 50CBZ-32 | 20 | 32 | 65 | 2900 | 4 | 7 |
| 50CBZ-35 | 14 | 35 | 55 | 2900 | 4 | 7 |
| 50CBZ-42 | 21 | 42 | 55 | 2950 | 5.5 | 5 |
| 65CBZ-21 | 36 | 21 | 56 | 2950 | 4 | 5 |
| 65CBZ-42 | 36 | 42 | 57 | 2900 | 11 | 6 |
| 65CBZ-30 | 36 | 30 | 63 | 2900 | 5.5 | 6.5 |
| 65CBZ-50 | 24 | 50 | 56 | 2900 | 7.5 | 6.5 |
| 65CBZ-60 | 36 | 60 | 56 | 2950 | 15 | 6 |
| 80CBZ-21 | 60 | 21 | 57 | 2950 | 7.5 | 5.5 |
| 80CBZ-30 | 50 | 30 | 68 | 2900 | 7.5 | 6 |
| 80CBZ-42 | 60 | 42 | 55 | 2900 | 15 | 5 |
| 80CBZ-50 | 30 | 50 | 58 | 2900 | 15 | 6 |
| 80CBZ-55 | 60 | 55 | 54 | 2900 | 18.5 | 6 |
| 80CBZ-60 | 60 | 60 | 54 | 2950 | 22 | 6 |
| 80CBZ-65 | 48 | 65 | 63 | 2900 | 18.5 | 6 |
| 80CBZ-70 | 60 | 70 | 63 | 2900 | 30 | 6 |
| 80CBZ-75 | 60 | 75 | 60 | 2950 | 30 | 6 |
| 80CBZ-25 | 25 | 25 | 58 | 1450 | 5.5 | 7 |
| 100CBZ-20 | 90 | 20 | 73 | 2900 | 11 | 6 |
| 100CBZ-21 | 100 | 21 | 65 | 2950 | 11 | 5 |
| Model | Capacity | Head | Efficiency | Speed | Motor power | Suction head |
| m3/h | m | % | rpm | kw | m | |
| 100CBZ-30 | 100 | 30 | 68 | 2900 | 15 | 5 |
| 100CBZ-40 | 90 | 40 | 72 | 2900 | 18.5 | 5 |
| 100CBZ-42 | 100 | 42 | 62 | 2950 | 22 | 4.5 |
| 100CBZ-50 | 60 | 50 | 68 | 2900 | 18.5 | 5.5 |
| 100CBZ-60 | 100 | 60 | 66 | 2950 | 37 | 5 |
| 100CBZ-65 | 100 | 65 | 70 | 2900 | 30 | 5.5 |
| 100CBZ-80 | 100 | 80 | 70 | 2900 | 37 | 5.5 |
| 100CBZ-85 | 100 | 85 | 67 | 2950 | 55 | 5 |
| 125CBZ-32 | 160 | 32 | 67 | 2950 | 30 | 5 |
| 125CBZ-60 | 120 | 60 | 72 | 2900 | 37 | 6 |
| 125CBZ-50 | 120 | 50 | 72 | 2900 | 30 | 5.5 |
| 125CBZ-20 | 160 | 20 | 72 | 1450 | 18.5 | 5 |
| 150CBZ-20 | 200 | 20 | 75 | 1450 | 18.5 | 5 |
| 150CBZ-30 | 200 | 30 | 70 | 1450 | 37 | 7 |
| 150CBZ-45 | 200 | 45 | 70 | 1450 | 45 | 7 |
| 150CBZ-40 | 150 | 40 | 72 | 2900 | 30 | 5 |
| 200CBZ-14 | 250 | 14 | 72 | 1450 | 18.5 | 7 |
| 200CBZ-45 | 300 | 45 | 71 | 1450 | 75 | 7 |
| 250CBZ-55 | 450 | 55 | 72 | 1450 | 110 | 5 |
