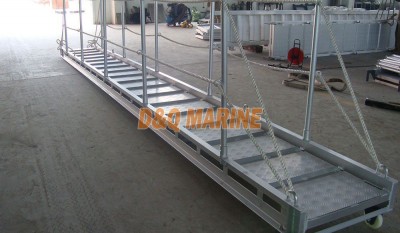

Aluminum Alloy Gangway

China Aluminum Alloy Gangway:

Aluminium Alloy Gangway is called aluminum shore gangway, it is used to connect the vessel and the dock for the boarding and disembarking for personnel when various types of ships are mooring alongside a deck. One side is with the roller, another side is with the hook to hook on the deck.

Technical Specification:

1. Standard: CB3116-82, JIS F2613-1796 & ISO7061-1993

2. Max usage angle: 30º

3. Load Test: 408KGS/m2

4. The safety net can be supplied with ladder, but must be declared when inquiry.

5. All aluminium alloy parts is anodized.

6. Standard Width: 600mm (inside)

7. Advantage: Light and Seawater Proof

Main Parts and Material:

1. Ladder Frame: Aluminium Alloy LF5

2. Handrail: Aluminum Alloy Pipe LY12

3. Rope: Nylon

4. Plate for Walking: Anti-slip Aluminum Alloy

5. Roller: Nylon

6. Hook: Aluminum Alloy or Steel

7.Safety Net: PP or Nylon
