ZJ20K Gear Fast Heater
China ZJ20K Gear Fast Heater:

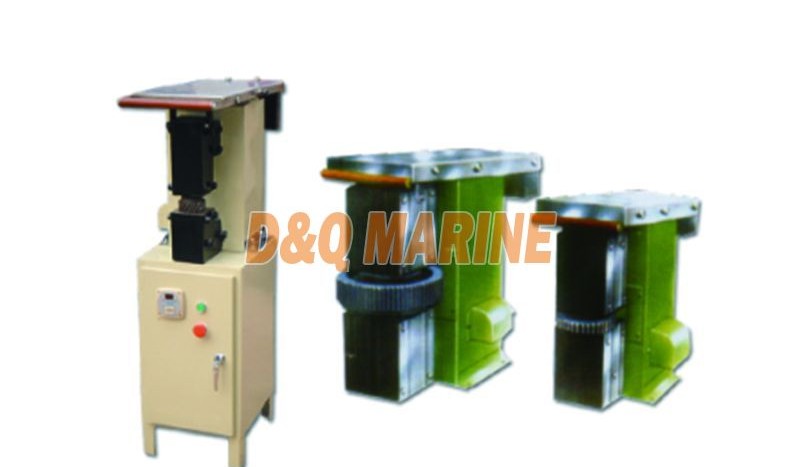

ZJ20K Gear Fast Heater
ZJ20K gear quick heater is used for heating gears, couplings, motor shells, bearing caps and other parts of power, transmission machinery, gearboxes and other transmission parts to meet the needs of interference assembly.
| Model | ZJ20K--I | --II | --III | --IV | --V | --VI | --VII | --IIX | |||
| Rated power (KVA) | 3.8 | 5.5 | 9.5 | 11.5 | 22 | 34 | 41.5 | 60 | |||
| Rated voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | |||
| Rated current (A) | 10 | 15 | 25 | 30 | 60 | 90 | 110 | 160 | |||
| Heating the workpiece | Inner diameter (mm) | 10-25 | 10-40 | 10-70 | 10-90 | 30-110 | 30-110 | 30-120 | 30-120 | ||
| Maximum outer diameter(mm) | 70 | 80 | 100 | 120 | 300 | 450 | 600 | 800 | |||
| Width(mm) | 30 | 35 | 35 | 50 | 50-150 | 70-170 | 80-180 | 90-200 | |||
| Weight (Kg) | 45 | 58 | 90 | 145 | 205 | 370 | 450 | 500 | |||
